 | Recommended |
|---|
MSRP | ($4,115) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Weight | 51.5 lbs | |
| Aluminum | ||
Fork | Suntour XCR Air | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
| Shimano 250W 60Nm mid-drive | ||
| Shimano 504Wh | ||
Groupset | Deore, Shimano | |
Drivetrain | 1 × 10 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

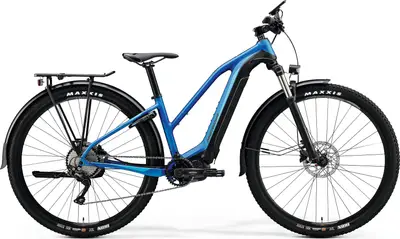

Summary | The Merida eBIG.TOUR 400 EQ is a 29″ aluminum frame commuter e-bike with upper mid-range components and hydraulic disc brakes. | |
Frame | eBIG.TOUR LITE II, material: aluminium, 29" wheelsize, 148x12mm axle standard, intube, max. 504 Wh BB Standard: BSA, Threaded | |
|---|---|---|
Fork | Suntour XCR34 LOR, Air, 100mm suspension travel, Tapered, 51mm fork offset | |
Bottom Bracket | included | |
Headset | MERIDA 1901 | |
Handlebar | MERIDA Expert CC, material: aluminium, 720mm width, 10mm rise | |
Saddle | MERIDA EXPERT TK, V-mount | |
Seatpost | MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback | |
Pedals | VP, VPE-537 |
Rear Derailleur | Shimano Deore Shadow+ | |
|---|---|---|
Crank | Shimano CRE70-B, 36 teeth, Shimano FC-E8000 | |
Shifters | Shimano Deore | |
Cassette | Shimano HG500, 11-42 teeth, 10 speed | |
Chain | CNHG54 | |
Brakes | Shimano MT-200 |
Rims | MERIDA Comp CC, 20mm inner width, material: aluminium | |
|---|---|---|
Front Hub | MERIDA COMP TR | |
Rear Hub | MERIDA COMP TR | |
Tires | Maxxis Ikon | |
Disc Rotors | Shimano RT30 / Shimano RTEM300 |
Motor | Shimano E7000, 60Nm | |
|---|---|---|
Battery | Shimano E8035, 504Wh | |
Display | Shimano SC-E6100 |
Lights | Herrmans H-BLACK MR4 E / Herrmans H-Cargo integrated in MERIDA MIK carrier | |
|---|---|---|
Fenders | Sunnywheel SW-FA311-65A/ SW-FA311-65E1 | |
Racks | MERIDA TA-7603B w/spring clamp + H-Cargo light | |
Lock | Abus 5650 LH-3 lock | |
Stand | CL-KA98, 29" |
