Category | Crosscountry, E-Bike | |
Frame | Aluminum | |
| Suntour XCM | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Tektro Hydraulic Disc | ||
| Shimano 85Nm mid-drive | ||
| Shimano 630Wh | ||
| Alivio | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

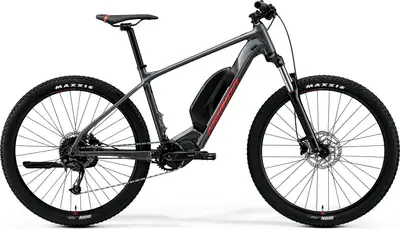

Summary | The Merida eBIG.SEVEN LTD is a 27.5″ aluminum frame hardtail crosscountry e-bike with mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | eBIG.SEVEN LITE, material: aluminium, max. wheelsize 27.5x2.20" without fender max./ 27.5"x2.00" with fender max. wheelsize, 148x12mm axle standard, external BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | SR Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 27.5x2.2" max wheelsize Travel: 100mm Spring Type: Coil | |
Bottom Bracket | BSA, 73mm, threaded | |
Headset | MERIDA 2341 | |
Handlebar | MERIDA EXPERT CC, 720mm width, 10mm rise | |
Saddle | MERIDA COMP SL, V-mount | |
Seatpost | MERIDA EXPERT, 30.9mm diameter, 15mm setback Type: Rigid | |
Pedals | VP VPE-537 |
Rear Derailleur | Shimano Alivio M3100, SGS | |
|---|---|---|
Crank | Shimano CRE70-B, 34 teeth | |
Shifters | Shimano Alivio | |
Cassette | Shimano HG200, 11-36 teeth, 9 speed | |
Chain | KMC e9S | |
Brakes | Tektro M275, 2 piston Type: Tektro Hydraulic Disc |
Rims | MERIDA COMP CC, 20mm inner width, material: aluminium | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock | |
Tires | Maxxis Ikon, 27.5x2.2" | |
Disc Rotors | Shimano RT10, 180 mm |
Motor | Shimano EP8, 85Nm | |
|---|---|---|
Battery | Shimano E8016, 630Wh | |
Display | Shimano SC-E5003A |
Stand | Massload CL-KA98 |
|---|
