 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 42.4 lbs | |
Fork | Fox Rhythm Float 32 | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
| Shimano 250W 70Nm mid-drive | ||
| Shimano 504Wh | ||
Groupset | XT, Shimano | |
Drivetrain | 1 × 11 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

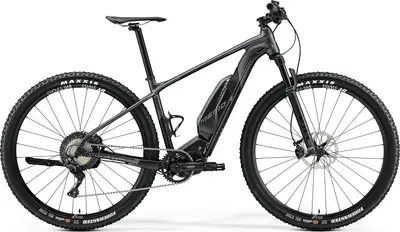

Summary | The Merida eBIG.NINE 900 is a 29″ hardtail crosscountry e-bike with high-end components. | |
Based on frame geometry and build specs.
Frame | eBIG.NINE | |
|---|---|---|
Fork | Fox Rhythm 32 Float, Air, 100mm suspension travel, Tapered, Remote lockout | |
Shock | N/A | |
Headset | MERIDA M2333 neck, 2191025648 | |
Stem | Merida Expert CC, 31.8mm diameter, 6° stem angle | |
Handlebar | MERIDA Expert CC, 720mm width, 10mm rise | |
Saddle | MERIDA Expert CC | |
Seatpost | MERIDA Expert, 30.9mm diameter, 15mm setback | |
Pedals | VP, VPE-537 | |
Grips | Merida Expert EC |
Rear Derailleur | Shimano XT | |
|---|---|---|
Front Derailleur | no | |
Crank | Shimano CRE80-B, 38 teeth | |
Shifters | no / Shimano XT 11 | |
Cassette | Shimano M7000, 11-46 teeth, 11 speed | |
Chain | KMC X11e | |
Chain Guide | Mr. Control CH-E8 mini | |
Brakes | Shimano XT fin | |
Brake Levers | attached |
Rims | DT Swiss Spline M1700, 110x15mm width front hub, 148x12mm width rear hub, 35mm inner width, Centerlock | |
|---|---|---|
Spokes | attached | |
Front Hub | DT Swiss Spline M1700 wheelset, Centerlock, 110x15mm front, 148x12mm rear | |
Rear Hub | DT Swiss Spline M1700 wheelset, Centerlock, 110x15mm front, 148x12mm rear | |
Tires | Maxxis Forekaster, 29x2.2", fold |
Motor | Shimano E8000, 70Nm | |
|---|---|---|
Battery | Shimano E8010, 504 Wh | |
Display | Shimano SC-E8000 |
