    eBIG.NINE 7752024 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		51.4 lbs
    5.3
    Frame
    		Aluminum
    		Suntour RAIDON
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		750Wh
    		XT, Deore
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary

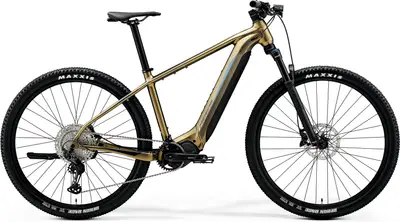

    		The Merida eBIG.NINE 775 is a 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eBIG.NINE 775
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    eBIG.NINE 775

    Highest gear

    (descending)

    Geometry
    Specs
    eBIG.NINE 7752024 Merida
    Frame

    eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max. / 29x2.25" with fender max. wheelsize, 148x12 mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour RAIDON34 LOR, Air, 100 mm suspension travel, Tapered, 51 mm fork offset, 29x2.4" max. wheelsize

    Travel: 100mm

    Spring Type: Air

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8157

    Handlebar

    MERIDA EXPERT eTR, 760 mm width, 20 mm rise

    Saddle

    PROXIM W400 STN, V-mount adapter, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback

    Type: Rigid

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano XT M8100 Shadow+ 12

    Crank

    Shimano CRE80-12-B, 34 teeth

    Shifters

    Shimano DEORE M6100

    Cassette

    Shimano Deore M6100, 10-51 teeth, 12 speed

    Chain

    KMC e12

    Brakes

    Shimano M4100, 4 piston

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC II, 25 mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B / Shimano TC600-MS-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-B / Shimano TC600-MS-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Rekon Race, 29x2.35", fold, TR EXO

    Disc Rotors

    Shimano RT30, 180 mm

    Electric Components
    Motor

    Shimano EP801, 85Nm

    Battery

    Trendpower Internal Battery 750Wh

    Display

    Shimano SC-EN600

    Accessories
    Stand

    Massload CL-KA98
