    eBIG.NINE 4002026 Merida
    Recommended
    MSRP
    ($3,922)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    4.5
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Alivio Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 630Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary

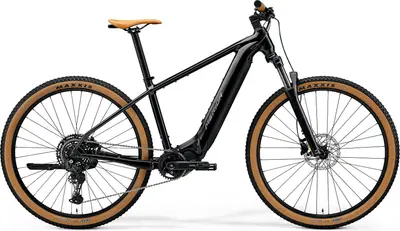

    		The Merida eBIG.NINE 400 is a 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eBIG.NINE 400
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    eBIG.NINE 400

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eBIG.NINE 4002026 Merida
    Frame

    eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 44mm fork offset, 29x2.4" max wheelsize

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA-8157

    Handlebar

    MERIDA MERIDA EXPERT TR II, 760mm width, 18mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE-537

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    Shimano CRE70-B, 34 teeth

    Shifters

    Shimano CUES U6000-10

    Cassette

    Shimano LG300, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT-200, 2 piston

    Type: Shimano Alivio Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC II, 25mm inner width, material: aluminium

    Spokes

    Black stainless, black nipples

    Front Hub

    Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-HM-B, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Maxxis Ikon, 29x2.2", kevlar bead

    Disc Rotors

    Shimano RT30 / Shimano RTEM300, 180 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Shimano EN806, 630Wh

    Display

    Shimano SC-EN500A

    Accessories
    Stand

    CL-KA98, 29"
