    eBIG.NINE 4002025 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		53.4 lbs
    4.5
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 630Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary

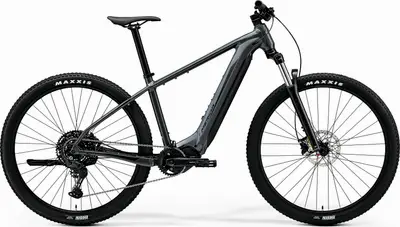

    		The Merida eBIG.NINE 400 is a 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eBIG.NINE 400
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    eBIG.NINE 400

    Highest gear

    (descending)

    Geometry
    Specs
    eBIG.NINE 4002025 Merida
    Frame

    eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA-8157

    Handlebar

    MERIDA MERIDA EXPERT TR II, 760mm width, 18mm rise

    Saddle

    MERIDA COMP SL, 28% recycled material, V-mount

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE-537

    Groupset
    Rear Derailleur

    Shimano Cues U4000, GS

    Crank

    Shimano CRE70-B, 34 teeth

    Shifters

    Shimano CUES U6000

    Cassette

    Shimano LG300, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC II, 25mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Maxxis Ikon, 29x2.2", kevlar bead

    Disc Rotors

    Shimano RT30 / Shimano RTEM300, 180 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Shimano EN806 630 Wh, removeable, No Range Extender compatibility

    Display

    Shimano SC-EN500

    Accessories
    Stand

    CL-KA98, 29"
