    E-SPRESSO CITY 5102017 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Frame
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Mechanical Disc
    		Bosch 600W 63Nm mid-drive
    		Bosch 500Wh
    		Deore
    Drivetrain
    		1 × 10
    Brand Site

    merida-bikes.com

    Summary

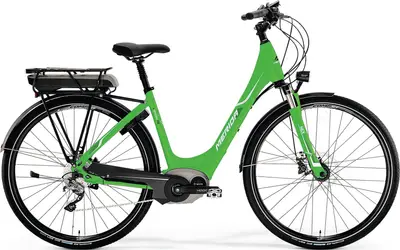

    		The Merida E-SPRESSO CITY 510 is a 700c hybrid e-bike with upper mid-range components and mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Geometry
    Specs
    E-SPRESSO CITY 5102017 Merida
    Frame

    E-SPRESSO CITY

    Fork

    SF16-NEX-DS-700C 50 [700C] / SF13-NEX-DS- 63 [26"]

    Headset

    VP-J203PES

    Handlebar

    JD-TR25A

    Saddle

    MERIDA E27

    Seatpost

    JD-SP79(EN-C) 31.6 suspension

    Type: Suspension

    Pedals

    VP-608

    Groupset
    Rear Derailleur

    Deore-10

    Crank

    Metropolis AL-8/IS

    Shifters

    Deore rapidfire plus 10 I-Spec

    Cassette

    CS-HG50-10

    Chain

    x10e EPT

    Chain Guide

    Curana H1 closed

    Brakes

    HD-M315 180 / 160

    Type: Mechanical Disc

    Brake Levers

    attached

    Wheels
    Rims

    MERIDA comp D

    Spokes

    stainless

    Front Hub

    Deore HB-M615 / Deore FH-M615

    Rear Hub

    Deore HB-M615 / Deore FH-M615

    Tires

    BIG APPLE

    Electric Components
    Motor

    Bosch Performance Line

    Battery

    Bosch PowerPack Racktype 500Wh

    Display

    Bosch Intuvia

    Accessories
    Lights

    LS 860 Bike-I duo 35 lux / LS 611, E-Bike

    Fenders

    Alloy - stainless stay - FV513/FV515

    Racks

    Bosch 28" black, 00662

    Lock

    frame lock 5650 LH-3

    Bell

    mini
