Bike Comparison

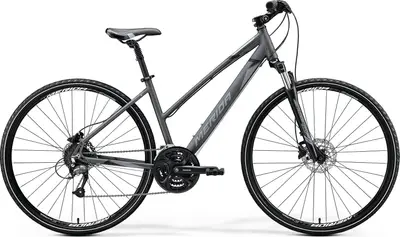

    CROSSWAY L 402020 Merida
    Recommended
    MSRP
    ($695)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid
    Weight
    		32.4 lbs
    5.5
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Altus
    Drivetrain
    		3 × 9
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida CROSSWAY L 40 is a 700c aluminum frame hybrid bike with modest components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    CROSSWAY L 40

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CROSSWAY L 402020 Merida
    Frame

    CROSSWAY SPEED L, material: aluminium, 700C wheelsize, 135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, Threaded

    Fork

    SR Suntour NEX HLO, Coil, 63mm suspension travel, lockout

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    FSA TH-7420ST-W, Cartridge Bearing, Shimano FD-M370

    Headset

    FSA TH888/NO.10, AL cap with STS bolt+ ST stop nut

    Handlebar

    MERIDA CC, material: aluminium, 660mm width, 25mm rise

    Seatpost

    MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

    Type: Suspension

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano RD-M370

    Front Derailleur

    Shimano FD-M370

    Crank

    Shimano FC-M371, 48-36-26 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL

    Shifters

    Shimano ST-EF505

    Cassette

    Shimano CS-HG200, 11-32 teeth, 9 speed

    Chain

    KMC M99

    Brakes

    Shimano ST-EF505

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano ST-EF505

    Wheels
    Rims

    MERIDA CC, 17mm inner width, material: aluminium

    Tires

    MERIDA K1171

    Disc Rotors

    Shimano RT10
