 | Recommended |
|---|
MSRP | ($791) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Hybrid | |
Weight | 31.3 lbs | |
| Aluminum | ||
Fork | Suntour NEX | |
Wheels | Aluminum | |
Wheel Size | 700c | |
Brakes | Hydraulic Disc | |
Groupset | Alivio, Altus | |
Drivetrain | 3 × 9 | |
Suspension | Hardtail | |
Front Travel | 63mm | |
Brand Site | ||

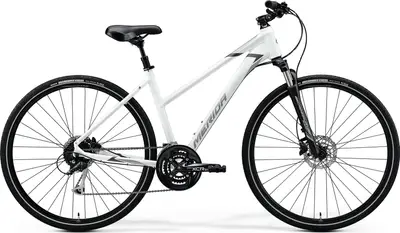

Summary | The Merida CROSSWAY L 100 is a 700c aluminum frame hybrid bike with mid-range components and hydraulic disc brakes. | |
Frame | CROSSWAY TFS L, material: aluminium, 700C wheelsize, 135x9mm axle standard, BSA bottom bracket standard BB Standard: BSA, Threaded | |
|---|---|---|
Fork | Suntour NEX HLO, Coil, 63mm suspension travel, Lockout | |
Bottom Bracket | FSA TH-7420ST Cartridge Bearing | |
Headset | MERIDA M2346 Neck | |
Handlebar | MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise | |
Saddle | MERIDA Cross Sport | |
Seatpost | MERIDA TK, 30.9mm diameter, 10mm setback, 40mm seatpost suspension travel | |
Pedals | VP VPE-891 |
Rear Derailleur | Shimano Alivio | |
|---|---|---|
Front Derailleur | Shimano M370 | |
Crank | SR XCR, 48-36-26 teeth, 170 mm-XS/S, 175 mm-M/XL | |
Shifters | Shimano Altus | |
Cassette | Shimano HG200, 11-34 teeth, 9 speed | |
Chain | KMC M99 | |
Brakes | Shimano MT-200 | |
Brake Levers | Shimano MT-200 |
Rims | MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium | |
|---|---|---|
Front Hub | QR | |
Rear Hub | QR | |
Tires | Maxxis Overdrive Excel | |
Disc Rotors | Shimano RT10 |
