    CROSSWAY 402020 Merida
    Recommended
    MSRP
    ($706)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid
    Weight
    		32.6 lbs
    5.5
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Altus
    Drivetrain
    		3 × 9
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary

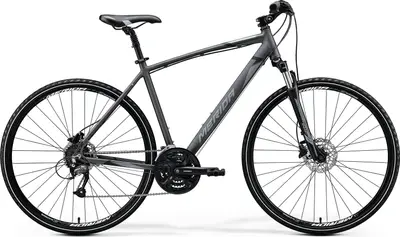

    		The Merida CROSSWAY 40 is a 700c aluminum frame hybrid bike with modest components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    CROSSWAY 40

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CROSSWAY 402020 Merida
    Frame

    CROSSWAY SPEED, material: aluminium, 700C wheelsize, 135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, Threaded

    Fork

    SR Suntour NEX HLO, Coil, 63mm suspension travel, lockout

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    FSA TH-7420ST-W, Cartridge Bearing

    Headset

    FSA TH888/NO.10

    Handlebar

    MERIDA CC, material: aluminium, 660mm width, 25mm rise

    Saddle

    MERIDA Cross Sport

    Seatpost

    MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

    Type: Suspension

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano RD-M370

    Front Derailleur

    Shimano FD-M370

    Crank

    Shimano FC-M371, 48-36-26 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL

    Shifters

    Shimano ST-EF505

    Cassette

    Shimano CS-HG200, 11-32 teeth, 9 speed

    Chain

    KMC M99

    Brakes

    Shimano ST-EF505

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano ST-EF505

    Wheels
    Rims

    MERIDA CC, 17mm inner width, material: aluminium

    Tires

    MERIDA K1171

    Disc Rotors

    Shimano RT10
