Bike Comparison
    CROSSWAY 3002020 Merida
    Recommended
    MSRP
    ($950)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid
    Weight
    		29.8 lbs
    6.2
    Frame
    		Aluminum
    Fork
    		Suntour NCX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Deore, FSA
    Drivetrain
    		3 × 10
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary

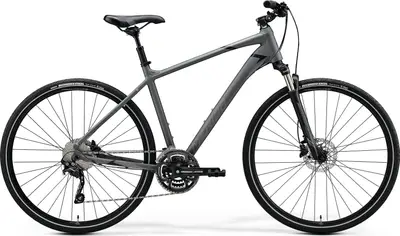

    		The Merida CROSSWAY 300 is a 700c aluminum frame hybrid bike with upper mid-range components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    CROSSWAY 300

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CROSSWAY 3002020 Merida
    Frame

    CROSSWAY TFS, material: aluminium, 700C wheelsize, 135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, Threaded

    Fork

    Suntour NCX-D LO, Coil, 63mm suspension travel, Lockout

    Bottom Bracket

    FSA TH-7420ST Cartridge Bearing

    Headset

    MERIDA M2346 Neck

    Handlebar

    MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise

    Saddle

    MERIDA Cross Sport

    Seatpost

    MERIDA TK, 30.9mm diameter, 10mm setback, 40mm seatpost suspension travel

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano Deore

    Front Derailleur

    Shimano Deore

    Crank

    FSA Alfa Drive, 48-36-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL

    Shifters

    Shimano Deore

    Cassette

    Shimano HG500, 11-34 teeth, 10 speed

    Chain

    KMC X10

    Brakes

    Shimano MT-200

    Brake Levers

    Shimano MT-200

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium

    Front Hub

    QR

    Rear Hub

    QR

    Tires

    Maxxis Overdrive Excel

    Disc Rotors

    Shimano RT10
