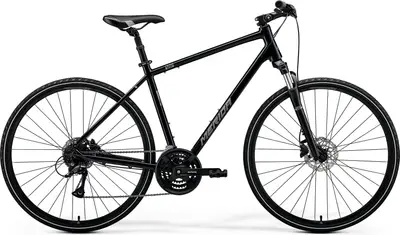

    CROSSWAY 202024 Merida
    Recommended
    MSRP
    ($704)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid
    Weight
    		32.2 lbs
    5.6
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Tektro Hydraulic Disc
    		Tourney, Acera
    Drivetrain
    		3 × 8
    Suspension
    		Full
    Front Travel
    		63mm
    Rear Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida CROSSWAY 20 is a 700c aluminum frame hybrid bike with mid-range components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    CROSSWAY 20

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CROSSWAY 202024 Merida
    Frame

    CROSSWAY TFS III, 63 mm suspension travel, material: aluminium, 700x50C max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    SR Suntour NEX HLO, Coil, 63 mm suspension travel, lockout, 700x50C max. wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    BSA, threaded

    Headset

    MERIDA M2345

    Handlebar

    MERIDA CC, material: aluminium, 660 mm width, 25 mm rise

    Saddle

    MERIDA Cross Sport

    Seatpost

    MERIDA TK, 27.2 mm diameter, 13 mm setback, 40 mm seatpost suspension travel

    Type: Suspension

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano RD-M360

    Front Derailleur

    Shimano FD-TY601

    Crank

    Shimano TY301, 48-38-28 teeth, MAT Aluminium, 170 mm-XXS/XS/S, 175 mm-M up

    Shifters

    Shimano ST-EF505

    Cassette

    Sunrace CSM668, 11-32 teeth, 8 speed

    Chain

    KMC Z8.1

    Brakes

    Tektro M275, hydraulic brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    MERIDA CC, 17 mm inner width, material: aluminium

    Spokes

    Black steel

    Front Hub

    Shimano TX505, 100x9 mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TX505, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    MERIDA K1171, 700x40C, wire

    Disc Rotors

    Shimano RT10, 160 mm
