 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Hybrid | |
Weight | 32.8 lbs | |
| Aluminum | ||
Fork | Suntour NEX | |
Wheels | Aluminum | |
Wheel Size | 700c | |
Brakes | Mechanical Disc | |
Groupset | Altus, Tourney | |
Drivetrain | 3 × 8 | |
Suspension | Hardtail | |
Front Travel | 63mm | |
Brand Site | ||

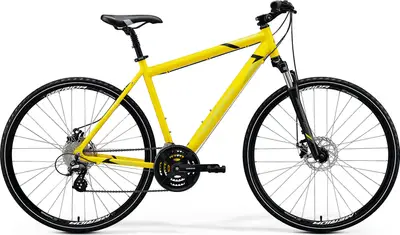

Summary | The Merida CROSSWAY 15-MD is a 700c aluminum frame hybrid bike with mid-range components and mechanical disc brakes. | |
Frame | CROSSWAY DT, material: aluminium, 700C wheelsize, 135x9mm axle standard, BSA bottom bracket standard BB Standard: BSA, Threaded | |
|---|---|---|
Fork | SR Suntour NEX, Coil, 63mm suspension travel | |
Bottom Bracket | FSA TH-7420ST-W, Cartridge Bearing | |
Headset | FSA TH888 | |
Handlebar | MERIDA CC, material: aluminium, 660mm width, 25mm rise | |
Saddle | MERIDA Cross Sport | |
Seatpost | MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel | |
Pedals | VP VPE-891 |
Rear Derailleur | Shimano RD-M310 | |
|---|---|---|
Front Derailleur | Shimano FD-TY710 | |
Crank | Shimano TY301, 48-38-28 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL | |
Shifters | Shimano ST-EF500 | |
Cassette | Sunrace CSM668, 11-32 teeth, 8 speed | |
Chain | KMC M700 | |
Brakes | Jak J8 disc | |
Brake Levers | Shimano ST-EF500 |
Rims | MERIDA CC, 17mm inner width, material: aluminium | |
|---|---|---|
Spokes | Steel UCP | |
Front Hub | Joytech D041DSE, 100x9mm width front hub, 32 spoke holes, 6 bolt | |
Rear Hub | Joytech D142TSE, 135x9mm width rear hub, 32 spoke holes, 6 bolt | |
Tires | MERIDA K1171, 700x40C, wire |
