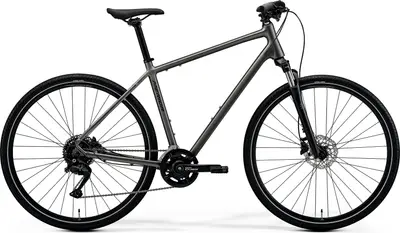

    CROSSWAY 1002026 Merida
    Recommended
    MSRP
    ($1,006)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid
    Weight
    		30.6 lbs
    6.2
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		CUES
    Drivetrain
    		2 × 9
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida CROSSWAY 100 is a 700c aluminum frame hybrid bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    CROSSWAY 100

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CROSSWAY 1002026 Merida
    Frame

    CROSSWAY TFS IV, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Crossway EQ-kit ready

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    SR Suntour NEX HLO, Coil, 63mm suspension travel, Lockout, 700x48C max. wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    Shimano BB-UN101, 73mm

    Headset

    MERIDA M2346 Neck

    Stem

    MERIDA COMP CC, material: aluminium, 31.8mm diameter, 17°° stem angle, 90mm

    Handlebar

    MERIDA COMP CC, material: aluminium, 680mm width, 15mm rise

    Saddle

    MERIDA COMP TK

    Seatpost

    MERIDA COMP CC, material: aluminium, 30.9mm diameter, 5mm setback

    Type: Rigid

    Pedals

    VP VPE-889P

    Groupset
    Rear Derailleur

    Shimano CUES U3020, SGS

    Front Derailleur

    Shimano CUES U4000

    Crank

    Shimano CUES U4000, 40-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL

    Shifters

    Shimano CUES U4000

    Cassette

    Shimano LG300, 11-36 teeth, 9 speed

    Chain

    KMC xGlide

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano QC300 / Shimano QC300-HM, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano QC300 / Shimano QC300-HM, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Kenda Ambra K1278, 700x45C, wire, reflective stripe, Rear: Kenda Ambra K1278, 700x45C, wire, reflective stripe

    Disc Rotors

    Shimano RT10, 160mm
