    CROSSWAY 1002024 Merida
    Recommended
    MSRP
    ($1,053)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid
    Weight
    		30.3 lbs
    6.2
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		CUES
    Drivetrain
    		2 × 9
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary

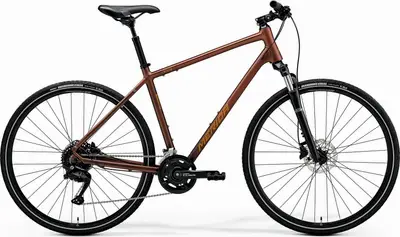

    		The Merida CROSSWAY 100 is a 700c aluminum frame hybrid bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    CROSSWAY 100

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CROSSWAY 1002024 Merida
    Frame

    CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    SR Suntour NEX HLO, Coil, 63 mm suspension travel, Lockout, 700x48C max. wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    Shimano BB-UN101, 73 mm

    Headset

    MERIDA M2346 Neck

    Stem

    MERIDA COMP TK, material: aluminium, 31.8 mm diameter, adjustable, XXS/XS/S/M: 95 mm, L/XL: 110 mm

    Handlebar

    MERIDA COMP CC, material: aluminium, 660 mm width, 25 mm rise

    Saddle

    MERIDA Cross Sport

    Seatpost

    MERIDA TK, 30.9 mm diameter, 10 mm setback, 45 mm seatpost suspension travel

    Type: Suspension

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U3020, SGS

    Front Derailleur

    Shimano CUES U4000

    Crank

    Shimano CUES U4000, 40-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL

    Shifters

    Shimano CUES U4000

    Cassette

    Shimano LG300, 11-36 teeth, 9 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20 mm inner width, 17 mm height, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano QC300 / Shimano QC300-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano QC300 / Shimano QC300-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild, Rear: Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild

    Disc Rotors

    Shimano RT10, 160 mm
