    CROSSWAY 102025 Merida
    Recommended
    MSRP
    ($872)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid
    4.4
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Mechanical Disc
    		Tourney, Altus
    Drivetrain
    		3 × 7
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary

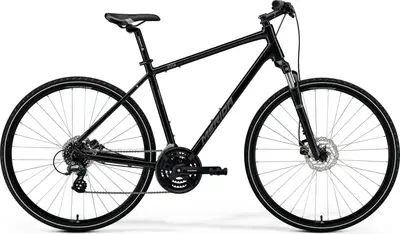

    		The Merida CROSSWAY 10 is a 700c aluminum frame hybrid bike with modest components and shimano mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    35 mph

    CROSSWAY 10

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CROSSWAY 102025 Merida
    Frame

    CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    Suntour NEX DS, Coil, 63mm suspension travel, 700x50C max. wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    Shimano BB-UN101 73-123

    Headset

    MERIDA M2345

    Stem

    MERIDA COMP TK, material: aluminium, 25.4mm diameter, 7° stem angle, 100 mm all sizes

    Handlebar

    MERIDA CC, material: steel, 620mm width, 30mm rise

    Saddle

    MERIDA Cross Sport

    Seatpost

    MERIDA TK

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano RD-M310-7

    Front Derailleur

    Shimano FD-TY510-3

    Crank

    Shimano TY301, 48-38-28 teeth, MAT Aluminium, 170 mm-XXS/SM, 175 mm-ML up

    Shifters

    Shimano ST-EF500-L / Shimano ST-EF500-7R

    Cassette

    Shimano CS-HG200-7, 12-32 teeth, 7 speed

    Chain

    SunRace CNM 84

    Brakes

    Shimano M375

    Type: Shimano Mechanical Disc

    Wheels
    Rims

    MERIDA CC, 17mm inner width, material: aluminium

    Spokes

    Steel UCP

    Front Hub

    Shimano TX505 / Shimano TY505-7, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TX505 / Shimano TY505-7, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: MERIDA K1171, 700x40C, wire, Rear: MERIDA K1171, 700x40C, wire

    Disc Rotors

    Shimano RT10, 160 mm
