Today’s Deals | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 30.0 lbs | |
Frame | ||
| RockShox Sektor | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Hydraulic Disc | ||
| NX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Hardtail | |
Front Travel | 130mm | |
Brand Site | ||

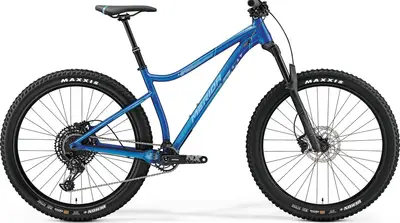

Summary | The Merida BIG.TRAIL 600 is a 27.5″ hardtail trail bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | BIG.TRAIL BB Standard: BB86/BB92, Press Fit | |
|---|---|---|
Fork | Rock Shox Sektor RL, Air 130mm suspension travel, Tapered Travel: 130mm Spring Type: Air | |
Shock | N/A | |
Bottom Bracket | SRAM BB DUB press-fit MTB 92 | |
Headset | MERIDA M2333 neck, 2191025648 | |
Stem | Merida Expert TR, 35mm diameter, 0° stem angle, 40mm length | |
Handlebar | MERIDA Expert TR, 780mm width, 20mm rise | |
Saddle | MERIDA Comp CC | |
Seatpost | MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost, Type: Dropper | |
Pedals | None included | |
Grips | Merida Comp EC |
Rear Derailleur | SRAM NX Eagle | |
|---|---|---|
Crank | SRAM NX Eagle, 30 teeth | |
Shifters | no / SRAM NX Eagle | |
Cassette | SRAM NX 1230 Eagle, 11-50 teeth, 12 speed | |
Chain | SRAM NX Eagle | |
Chain Guide | MRP 1X CS | |
Brakes | Shimano MT-500 Type: Shimano Hydraulic Disc | |
Brake Levers | Shimano MT-500 |
Rims | MERIDA Expert TP, 38 mm inner width | |
|---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock | |
Rear Hub | Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock | |
Tires | Maxxis Rekon, 27.5x2.8", fold, TR EXO 3C |
