    BIG.TRAIL 2002024 Merida
    Recommended
    MSRP
    ($998)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Weight
    		32.0 lbs
    3.9
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		CUES
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    merida-bikes.com

    Summary

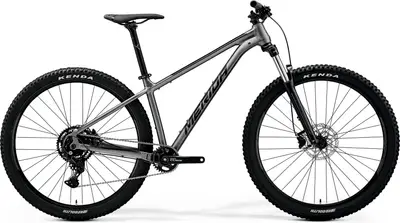

    		The Merida BIG.TRAIL 200 is a 29″ aluminum frame hardtail trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    BIG.TRAIL 200
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    BIG.TRAIL 200

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    BIG.TRAIL 2002024 Merida
    Frame

    BIG.TRAIL TFS, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCM32 DS, Coil, 120 mm suspension travel, Lockout, 46 mm fork offset, 29x2.4" max. wheelsize 15 mm thru-axle 15*100

    Travel: 120mm

    Spring Type: Coil

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA M4455

    Handlebar

    MERIDA EXPERT CC, material: aluminium, 740 mm width, 10 mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U4000, GS

    Crank

    Shimano CUES U4000, 32 teeth, 170 mm-S, 175 mm-M up

    Shifters

    Shimano CUES U4000

    Cassette

    Shimano LG300, 11-46 teeth, 9 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B, 110x15 mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-HM-B, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Kenda Regolith, 29x2.4", wire

    Disc Rotors

    Shimano RT10, 180 mm
