MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Frame | Aluminum | |
| RockShox Judy | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Hydraulic Disc | ||
| Altus | ||
Drivetrain | 2 × 9 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

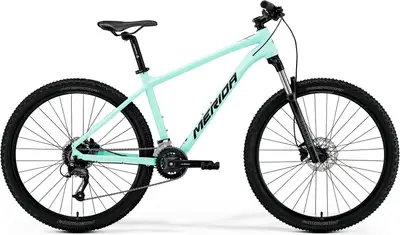

Summary | The Merida BIG.SEVEN 60 is a 27.5″ aluminum frame hardtail crosscountry bike with modest components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | BIG.SEVEN TFS IV, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Rock Shox Judy TK, Coil, 100mm suspension travel Lockout, 42mm fork offset, 27.5x2.25" max. wheelsize Travel: 100mm Spring Type: Coil | |
Bottom Bracket | Shimano BB-UN101 73-123 | |
Headset | MERIDA M2345 | |
Handlebar | MERIDA CC, material: aluminium, 690mm width, 15mm rise | |
Saddle | MERIDA Sport comfort | |
Seatpost | MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium Type: Rigid | |
Pedals | VP VPE-891 |
Rear Derailleur | Shimano RD-M370, SGS | |
|---|---|---|
Front Derailleur | Shimano FD-M202 | |
Crank | Shimano FC-MT101-2, 36-22 teeth, MAT Aluminium, 170 mm (XS/S), 175 mm (M/L) | |
Shifters | Shimano SL-M201-2L / Shimano SL-M201-9R | |
Cassette | Shimano CS-HG200, 11-32 teeth, 9 speed | |
Chain | KMC xGlide | |
Brakes | Shimano MT200, hydraulic brake Type: Shimano Hydraulic Disc |
Rims | MERIDA CC, 17mm inner width, material: aluminium | |
|---|---|---|
Spokes | Black steel | |
Front Hub | Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock | |
Tires | MERIDA K1080, 27.5x2.2", wire | |
Disc Rotors | Shimano RT10, 160 mm |
