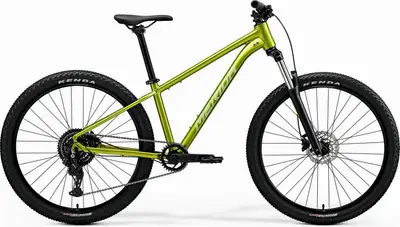

    BIG.SEVEN 202026 Merida
    Recommended
    MSRP
    ($704)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    3.8
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Hydraulic Disc
    		Essa
    Drivetrain
    		1 × 8
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida BIG.SEVEN 20 is a 27.5″ aluminum frame hardtail trail bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    BIG.SEVEN 20
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    BIG.SEVEN 20

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    BIG.SEVEN 202026 Merida
    Frame

    BIG.SEVEN TFS V, material: aluminum, 27.5 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCM32 NLO, Coil, 120mm suspension travel, lockout, 29x2,4" max. wheelsize

    Travel: 120mm

    Spring Type: Coil

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    FSA NO.55R/57SC/57B

    Handlebar

    MERIDA CC, material: aluminium, 15mm rise, XXS/XS: 700WHB, S: 720mm width

    Saddle

    MERIDA Sport

    Seatpost

    MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE 536

    Groupset
    Rear Derailleur

    Shimano Essa RD-U2000-8, GS

    Crank

    Prowheel Epro-MD26S, 32 teeth, MAT Aluminium, 165mm on all sizes

    Shifters

    Shimano Essa SL-315-8R

    Cassette

    Shimano CS-HG300-8, 11-45 teeth, 8 speed

    Chain

    KMC Z8.3

    Brakes

    Shimano MT200, hydraulic brake

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC, 20mm inner width, material: aluminium

    Spokes

    Black steel

    Front Hub

    Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Kenda Booster, 27.5x2.4"

    Disc Rotors

    Shimano RT10, 160 mm
