 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 27.1 lbs | |
| Aluminum | ||
Fork | Manitou Markhor | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | XT, SLX | |
Drivetrain | 2 × 12 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

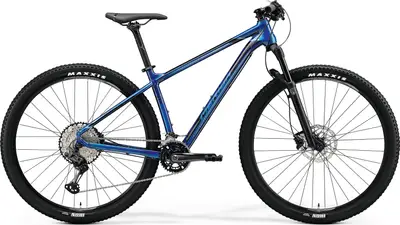

Summary | The Merida BIG.NINE XT2 is a 29″ aluminum frame hardtail crosscountry bike with high-end components. | |
Based on frame geometry and build specs.
Frame | BIG.NINE TFS, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset | |
Bottom Bracket | Shimano BB-MT800 | |
Headset | MERIDA M2331 | |
Handlebar | MERIDA EXPERT CC, material: aluminium, 720mm width, flat | |
Saddle | MERIDA COMP CC | |
Seatpost | MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback | |
Pedals | VP VPE-891 |
Rear Derailleur | Shimano XT M8120 Shadow+ | |
|---|---|---|
Front Derailleur | Shimano SLX | |
Crank | Shimano XT, 36-26 teeth, 170 mm-S, 175 mm-M up | |
Shifters | Shimano XT | |
Cassette | Shimano M7100, 10-45 teeth, 12 speed | |
Chain | Shimano SLX | |
Brakes | Shimano MT-500, 2 piston |
Rims | MERIDA COMP CC, 20mm inner width, material: aluminium | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano MT500, 135x9mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Maxxis Ikon, 29x2.2", fold |
