 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 26.9 lbs | |
| Aluminum | ||
Fork | Manitou Machete Comp | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | XT | |
Drivetrain | 2 × 11 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

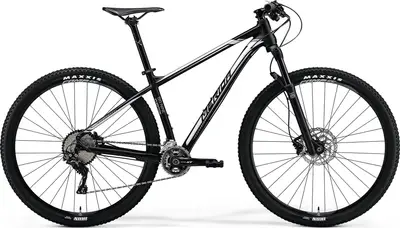

Summary | The Merida BIG.NINE XT-EDITION is a 29″ aluminum frame hardtail crosscountry bike with high-end components. | |
Based on frame geometry and build specs.
easyextreme
nimblestable
BIG.NINE XT-EDITION
Other Crosscountry bikes
Frame | BIG.NINE TFS BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Manitou Machete Comp 100mm travel air fork with tapered steerer, 15mm bolt through axle with remote lockout | |
Bottom Bracket | BSA, 73mm, threaded | |
Headset | MERIDA M2331 | |
Handlebar | MERIDA Expert CC 720mm wide flat | |
Saddle | MERIDA Sport | |
Seatpost | MERIDA Comp in line 30.9mm | |
Pedals | VP, VPE-891 |
Rear Derailleur | Shimano XT Shadow+ | |
|---|---|---|
Front Derailleur | Shimano XT | |
Crank | Shimano XT 34-24 teeth | |
Shifters | Shimano XT 22 speed rapid fire | |
Cassette | Shimano M7000, 11 speed, 11-42 teeth | |
Chain | KMC X11-1 | |
Brakes | Shimano M500 hydraulic disc, 180mm / 160mm rotors | |
Brake Levers | Shimano M500 |
Rims | MERIDA BIG.NINE Comp CC | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Sealed bearing 15mm bolt through front and Shimano 4050 quick release rear, centerlock | |
Rear Hub | Sealed bearing 15mm bolt through front and Shimano 4050 quick release rear, centerlock | |
Tires | Maxxis Ikon 29er 2.2" folding |
