    BIG.NINE TR 7002026 Merida
    Recommended
    MSRP
    ($1,543)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    5.3
    Frame
    		Aluminum
    		Manitou Machete Comp
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    merida-bikes.com

    Summary

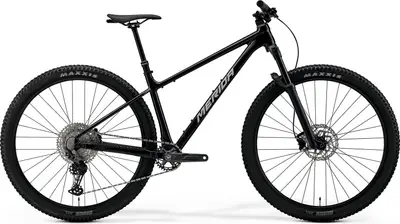

    		The Merida BIG.NINE TR 700 is a 29″ aluminum frame hardtail trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    BIG.NINE TR 700
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    BIG.NINE TR 700

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    BIG.NINE TR 7002026 Merida
    Frame

    BIG.NINE TR LITE III, material: aluminium, 29x2.4" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 73mm, Threaded

    Fork

    Manitou Machete Comp, Air, 120mm suspension travel, Tapered, 44 mm fork offset

    Travel: 120mm

    Spring Type: Air

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

    Handlebar

    MERIDA EXPERT CC, material: aluminium, 760mm width, 10mm rise

    Saddle

    MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA COMP TR, 30.9mm diameter, 0mm setback, travel seatpost S: 125mm, M/L: 150mm, XL/XXL 175mm

    Type: Dropper

    Groupset
    Rear Derailleur

    Shimano Deore M6100, SGS

    Crank

    Shimano Deore MT512, 32 teeth, 170 mm for all sizes

    Shifters

    Shimano SL-MT500-IL

    Cassette

    Shimano Deore M6100, 10-51 teeth, 12 speed

    Chain

    KMC X12

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-MS-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Rekon, 29x2.4", wire

    Disc Rotors

    Shimano RT10, 180mm
