MSRP | $579 | |
|---|---|---|
Where to Buy | — $1 At | $579 At Trek |
Category | Crosscountry | Crosscountry |
Weight | 18.5 lbs | 32.2 lbs |
| Carbon | Aluminum | |
Fork | Fox Factory Float 32 (air) | Suntour XCE (coil) |
Wheels | Carbon | |
| 29″ | 27.5″ / 29″ | |
Brakes | Hydraulic Disc | Mechanical Disc |
Groupset | XTR | Tourney, Altus |
Drivetrain | 1 × 12 | 2 × 7 |
Suspension | Hardtail | Hardtail |
Front Travel | 100mm | 100mm |
Brand Site | ||

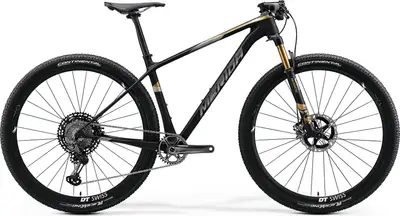

Summary | The Merida BIG.NINE 9000 is a 29″ carbon frame hardtail crosscountry bike with ultra high-end components. | |
Based on frame geometry and build specs.
Frame | BIG.NINE CF5, material: carbon, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard BB Standard: BB86/BB92, Press Fit | Size: XS, S, Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR; Size: M, ML, L, XL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR BB Standard: BB86/BB92, Press Fit |
|---|---|---|
Fork | Fox Factory 32 Float SC, Air, 100mm suspension travel, Tapered, Remote lockout, 44mm fork offset Travel: 100mm Spring Type: Coil | Size: XS, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel; Size: S, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel Travel: 100mm Spring Type: Coil |
Bottom Bracket | Shimano BB94-41A Pressfit | VP BC73, 73mm, threaded cartridge |
Headset | FSA NO.47/50CF | Semi-integrated, 1-1/8'' |
Stem | Size: XS, S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: ML, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length | |
Handlebar | MERIDA TEAM CC, material: carbon, 720mm width, flat | Size: XS, S, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: M, ML, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Saddle | Prologo Scratch 2 | Bontrager Verse Short, stainless steel rails |
Seatpost | MERIDA TEAM CC, material: carbon, 30.9mm diameter, 0mm setback, S-Flex | Size: XS, S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
Pedals | VP-536 nylon platform | |
Grips | Bontrager XR Endurance Comp, lock-on |
Rear Derailleur | Shimano XTR Shadow+ | Shimano Tourney TY300 |
|---|---|---|
Front Derailleur | Shimano Altus M315, 34.9mm clamp, top swing, dual pull | |
Crank | Shimano XTR, 34 teeth, 170 mm-S, 175 mm-M up | Size: XS, S, M, ProWheel TM-CY10, 36/22, 170mm length; Size: ML, L, XL, ProWheel TM-CY10, 36/22, 175mm length |
Shifters | Shimano XTR | Size: XS, S, M, ML, L, XL, Shimano EF500, 8 speed; Size: XS, S, M, ML, L, XL, Shimano EF500, 7 speed |
Cassette | Shimano XTR, 10-51 teeth, 12 speed | Shimano TZ500, 14-34, 7 speed |
Chain | Shimano M9100 | KMC Z7, 7 speed |
Brakes | Shimano XTR, 2 piston | Size: XS, S, M, ML, L, XL, Tektro MD-M280 mechanical disc; Size: XS, S, M, ML, L, XL, Tektro MD-M281 mechanical disc |
Rims | XRC 1200 Spline 25, 110x15mm width front hub, 148x12mm width rear hub, 25mm inner width, 6 Centerlock, Shimano 12 Speed, material: carbon, Tubeless ready (tubeless tape and valves included) | |
|---|---|---|
Tires | Continental Race King 2.2, 29x2.2", fold, RaceSport | |
Disc Rotors | Tektro, 6-bolt, 160mm |
