 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 23.7 lbs | |
| Carbon | ||
Fork | RockShox Reba | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | SLX | |
Drivetrain | 1 × 12 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

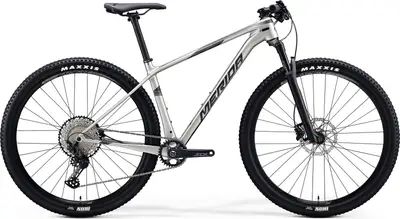

Summary | The Merida BIG.NINE 5000 is a 29″ carbon frame hardtail crosscountry bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | BIG.NINE CF3, material: carbon, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard BB Standard: BB86/BB92, Press Fit | |
|---|---|---|
Fork | Rock Shox Reba RL, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset | |
Bottom Bracket | Shimano BB71-41A pressfit | |
Headset | FSA NO.55E | |
Handlebar | MERIDA EXPERT CC, material: aluminium, 720mm width, flat | |
Saddle | MERIDA COMP CC | |
Seatpost | MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback |
Rear Derailleur | Shimano SLX Shadow+ | |
|---|---|---|
Crank | Shimano SLX, 32 teeth, 170 mm-S, 175 mm-M up | |
Shifters | Shimano SLX | |
Cassette | Shimano M7100, 10-51 teeth, 12 speed | |
Chain | Shimano SLX | |
Brakes | Shimano MT-500, 2 piston |
Rims | MERIDA EXPERT CC, 22.8mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) | |
|---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano MT510-B, 148x12mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Maxxis Ikon, 29x2.2", fold |
