    BIG.NINE 4002026 Merida
    Recommended
    MSRP
    ($1,197)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Weight
    		30.4 lbs
    4.9
    Frame
    		Aluminum
    		RockShox Judy Gold RL
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		Deore, CUES
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    merida-bikes.com

    Summary

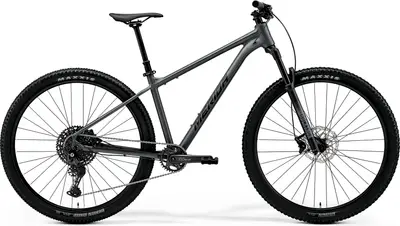

    		The Merida BIG.NINE 400 is a 29″ aluminum frame hardtail trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    BIG.NINE 400
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    BIG.NINE 400

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    BIG.NINE 4002026 Merida
    Frame

    BIG.NINE TFS V, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding

    BB Standard: BSA, 73mm, Threaded

    Fork

    Rock Shox Judy Gold RL, Air, 120mm suspension travel, Tapered, Lockout, 51mm fork offset

    Travel: 120mm

    Spring Type: Air

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    FSA NO.55R/57

    Handlebar

    MERIDA EXPERT CC, material: aluminium, 10mm rise, S: 720mm width, M/L/: 740mm width, XL/XXL: 760mm width

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA COMP TR IV, 30.9mm diameter, 0mm setback, travel seatpost S: 125mm, M/L: 150mm, XL/XXL 175mm

    Type: Dropper

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    Shimano CUES U6000, 32 teeth, 170mm for all sizes

    Shifters

    Shimano SL-MT500-IL

    Cassette

    SunRace 10-50t ZX11, CS-UX700 EA5, 10-50 teeth, 11 speed, Linkglide

    Chain

    KMC xGlide

    Brakes

    Shimano M4100, 2 piston

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready

    Spokes

    Black stainless

    Front Hub

    Shimano QC300, 100x9mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano QC300-HM, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Rekon Race, 29x2.4"

    Disc Rotors

    Shimano RT10, 180mm, 160mm
