Category | Crosscountry | |
Weight | 27.8 lbs | |
Frame | Aluminum | |
| Manitou Markhor | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Shimano Deore Hydraulic Disc | ||
| CUES | ||
Drivetrain | 1 × 11 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

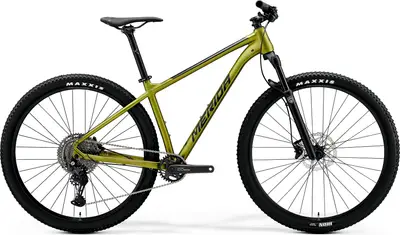

Summary | The Merida BIG.NINE 400 is a 29″ aluminum frame hardtail crosscountry bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | BIG.NINE TFS IV, material: aluminum, 29" wheelsize, 135x9 mm axle standard, BSA bottom bracket standard, Smooth welding BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Manitou Markhor Comp, Air, 100 mm suspension travel, Tapered, Lockout, 51 mm fork offset Travel: 100mm Spring Type: Air | |
Bottom Bracket | BSA, 73mm, threaded | |
Headset | MERIDA M4455 | |
Handlebar | MERIDA EXPERT CC, material: aluminium, 720 mm width, 10 mm rise | |
Saddle | MERIDA COMP SL, V-mount | |
Seatpost | MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback Type: Rigid | |
Pedals | VP VPE-891 |
Rear Derailleur | Shimano CUES U6000, GS | |
|---|---|---|
Crank | Shimano CUES U6000, 32 teeth, 170 mm-S, 175 mm-M up | |
Shifters | Shimano CUES U6000 | |
Cassette | Shimano LG400, 11-50 teeth, 11 speed | |
Chain | Shimano LG500 | |
Brakes | Shimano M4100, 2 piston Type: Shimano Deore Hydraulic Disc |
Rims | MERIDA COMP CC, 20 mm inner width, material: aluminium | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Maxxis Ikon, 29x2.2", wire | |
Disc Rotors | Shimano RT10, 180 mm, 160 mm |
