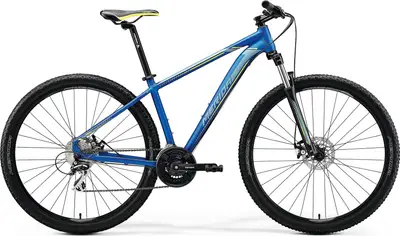

    BIG.NINE 20-MD2020 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		33.3 lbs
    3.1
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Promax Mechanical Disc
    		Tourney, Acera
    Drivetrain
    		3 × 8
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida BIG.NINE 20-MD is a 29″ aluminum frame hardtail crosscountry bike with mid-range components and promax mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    BIG.NINE 20-MD
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    33 mph

    BIG.NINE 20-MD

    Highest gear

    (descending)

    Geometry
    Specs
    BIG.NINE 20-MD2020 Merida
    Frame

    BIG.NINE SPEED N, material: aluminium, 29" wheelsize, 135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCM HLO, Coil, 100mm suspension travel, lockout

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    FSA TH-7420ST-W, Cartridge Bearing

    Headset

    FSA NO.10

    Handlebar

    MERIDA CC, material: aluminium, 690mm width, 15mm rise

    Saddle

    MERIDA Sport comfort

    Seatpost

    MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano RD-M360

    Front Derailleur

    Shimano FD-TY700

    Crank

    Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL

    Shifters

    Shimano ST-EF500

    Cassette

    Sunrace CSM668, 11-32 teeth, 8 speed

    Chain

    KMC M700

    Brakes

    Promax MTD-3.0 disc

    Type: Promax Mechanical Disc

    Brake Levers

    Shimano ST-EF500

    Wheels
    Rims

    MERIDA CC, 17mm inner width, material: aluminium

    Spokes

    Black steel

    Front Hub

    Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Tires

    MERIDA K1080, 29x2.2", wire
