    BIG.NINE 1002024 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		29.8 lbs
    4.1
    Frame
    		Aluminum
    		Suntour XCR Air
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		CUES
    Drivetrain
    		2 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary

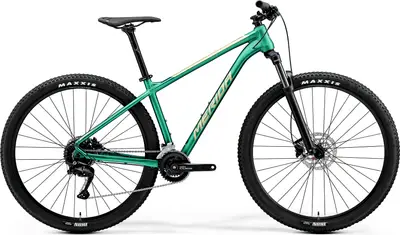

    		The Merida BIG.NINE 100 is a 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    BIG.NINE 100
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    BIG.NINE 100

    Highest gear

    (descending)

    Geometry
    Specs
    BIG.NINE 1002024 Merida
    Frame

    BIG.NINE TFS IV, material: aluminum, 29" wheelsize, 135x9 mm axle standard, BSA bottom bracket standard, Smooth welding

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCR LOR, Air, 100 mm suspension travel, Lockout, 46 mm fork offset

    Travel: 100mm

    Spring Type: Air

    Bottom Bracket

    FSA TH-7420ST Cartridge Bearing

    Headset

    MERIDA M2345

    Handlebar

    MERIDA EXPERT CC, material: aluminium, 720 mm width, 10 mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U4020, SGS

    Front Derailleur

    Shimano CUES U4000

    Crank

    Shimano CUES U4000, 36-22 teeth, 170 mm-S, 175 mm-M up

    Shifters

    Shimano CUES U4000

    Cassette

    Shimano LG300, 11-36 teeth, 9 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC, 20 mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano QC300 / Shimano QC300-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano QC300 / Shimano QC300-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Ikon, 29x2.2", wire

    Disc Rotors

    Shimano RT10, 180 mm, 160 mm
