    BIG TRAIL 7002024 Merida
    Recommended
    MSRP
    ($2,683)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Weight
    		29.5 lbs
    5.7
    Frame
    		Aluminum
    		Fox Performance Float 34
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		TRP Trail EVO Hydraulic Disc
    		XT
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		140mm
    Brand Site

    merida-bikes.com

    Summary

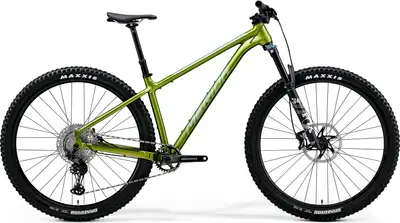

    		The Merida BIG TRAIL 700 is a 29″ aluminum frame hardtail trail bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    BIG TRAIL 700
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    BIG TRAIL 700

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    BIG TRAIL 7002024 Merida
    Frame

    BIG.TRAIL TFS, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 68mm, Threaded

    Fork

    Fox 34 Float Performance, Air, 140 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize

    Travel: 140mm

    Spring Type: Air

    Bottom Bracket

    Race Face BSA 68/73 – 24 mm

    Headset

    MERIDA M2331

    Stem

    MERIDA EXPERT TR, material: aluminium, 35 mm diameter, 0° stem angle, 50 mm

    Handlebar

    MERIDA COMP TR, material: aluminium, 780 mm width, 20 mm rise

    Saddle

    MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, S: 125 mm travel seatpost - M/L: 150 mm travel seatpost - XL/XXL 175 mm travel seatpost

    Type: Dropper

    Groupset
    Rear Derailleur

    Shimano XT, SGS

    Crank

    Race Face Aeffect, 32 teeth, 170 mm-S, 175 mm-M up

    Shifters

    Shimano SL-MT500-IL / Shimano XT M8100, Multi Release

    Cassette

    Shimano Deore M6100, 10-51 teeth, 12 speed

    Chain

    KMC X12

    Brakes

    TRP Trail Evo HD-M843, 4 piston

    Type: TRP Trail EVO Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Front Hub

    Shimano TC500-B / Shimano TC600-MS-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-B / Shimano TC600-MS-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Maxxis Dissector, 29x2.4", fold, TR EXO Dual, Rear: Maxxis Dissector, 29x2.4", fold, TR EXO Dual

    Disc Rotors

    TRP RC01E, 203 mm, 180 mm
