Compare: 2025 Merida BIG TRAIL 300

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	BIG TRAIL 3002025 Merida	Recommended

MSRP	($1,476)
Where to Buy	— $1 At
Category	Trail
Weight	32.6 lbs
	4.5
Frame	Aluminum
	Suntour XCR Air
Wheels	Aluminum
Wheel Size	29″
	Shimano Hydraulic Disc


	CUES
Drivetrain
Suspension	Hardtail
Front Travel	140mm
Brand Site	merida-bikes.com

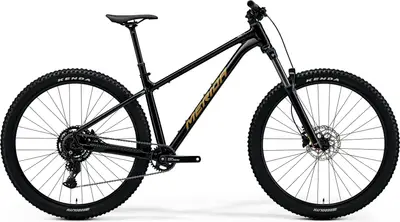

Summary	The Merida BIG TRAIL 300 is a 29″ aluminum frame hardtail trail bike with upper mid-range components.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from a Gear Advisor at Jenson USA

Similar Bikes

Insights

Ride Feel

Based on frame geometry and build specs.

Terrain

easyextreme

Handling

nimblestable

BIG TRAIL 300

Other Trail bikes

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

BIG TRAIL 300

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	BIG TRAIL 3002025 Merida

Frame	BIG.TRAIL TFS II, material: aluminium, 29x2.4" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard BB Standard: BSA, 73mm, Threaded
Fork	SR Suntour XCR34 2CR, Air, 140mm suspension travel, Tapered, lockout, 44mm fork offset, 29x2.4" max wheelsize Travel: 140mm Spring Type: Air
Bottom Bracket	Shimano BB-UN101, 73mm
Headset	Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
Stem	MERIDA COMP TR, material: aluminium, 35mm diameter, 0° stem angle, 40 mm
Handlebar	MERIDA COMP TR II, material: aluminium, 780mm width, 35mm rise
Saddle	MERIDA COMP SL, V-mount
Seatpost	MERIDA COMP TR II, 34.9mm diameter, 0mm setback, travel seatpost XSHORT: 150mm, SHORT, MID, LONG, XLONG: 170mm Type: Dropper

Groupset

Rear Derailleur	Shimano CUES U4000
Crank	Shimano CUES UT-400-1, 32 teeth, 170mm on all sizes
Shifters	Shimano CUES U4000
Cassette	SunRace U9, CS-U980 9AZ, 11-46 teeth
Chain	KMC xGlide
Brakes	Shimano MT200, 2 piston Type: Shimano Hydraulic Disc

Wheels

Rims	MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready
Front Hub	Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub	Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Tires	Front: Kenda Regolith, 29x2.4", wire, Rear: Kenda Regolith, 29x2.4", wire
Disc Rotors	Shimano RT10, 180mm
