    Stinson E2023 Marin
    Recommended
    MSRP
    $1,599
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    3.7
    Frame
    		Aluminum
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Mechanical Disc
    		250W 40Nm hub-drive
    		309Wh
    		Tourney, Altus
    Drivetrain
    		1 × 7
    Brand Site

    marinbikes.com

    Summary

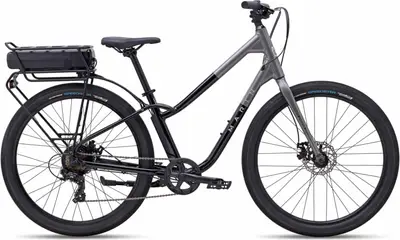

    		The Marin Stinson E is a 650b aluminum frame hybrid e-bike with mid-range components and mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    22 mph

    Stinson E

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Stinson E2023 Marin
    Frame

    Series 1 Comfort, eBike-Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

    Color: Gloss Black / Charcoal

    Fork

    CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

    Bottom Bracket

    Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

    Headset

    FSA, TH No.10P

    Stem

    Marin Alloy

    Handlebar

    Marin Alloy, 25mm Rise, 18˚ Backsweep

    Saddle

    Marin Comfort

    Seatpost

    Marin Alloy, 30.9mm

    Type: Rigid

    Pedals

    Marin Comfort Platform

    Grips

    Marin County

    Groupset
    Rear Derailleur

    Shimano Tourney, 7-Speed

    Front Derailleur

    -

    Crank

    Alloy Crank, Steel 38T Chainring, Ring Guard

    Shifters

    Shimano Altus 7-Speed RapidFire

    Cassette

    Shimano 7-Speed Freewheel, 14-34T

    Chain

    KMC Z8

    Brakes

    Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

    Type: Mechanical Disc

    Brake Levers

    Alloy, Long Pull

    Wheels
    Rims

    Marin Aluminum Double Wall, Disc Specific

    Front Hub

    Forged Aluminum Alloy, 32H

    Rear Hub

    250 Watt Hub Motor, 40Nm torque, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world

    Tires

    Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

    Electric Components
    Motor

    250 Watt Hub Motor, 40Nm torque, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world

    Battery

    309Wh, 36V, Rear Carrier Mounted

    Remote

    Handlebar Mount Switch & LCD Display

    Accessories
    Racks

    Marin Stinson E Custom Alloy w/ Pannier Mounts and Top Deck. Note: carrier does not conform to EN ISO 11243:2016 standards and is NOT designed for use with a child carrier.
