    Pine Mountain 12016 Marin
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    3.2
    Frame
    		Steel
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Hydraulic Disc
    		X7, X5
    Drivetrain
    		1 × 10
    Brand Site

    marinbikes.com

    Summary

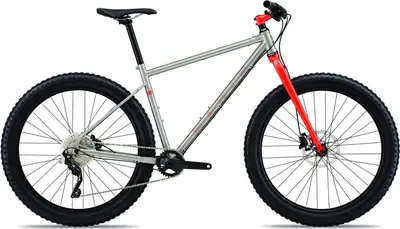

    		The Marin Pine Mountain 1 is a 27.5″ steel frame rigid crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Pine Mountain 1
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    Pine Mountain 1

    Highest gear

    (descending)

    Geometry
    Specs
    Pine Mountain 12016 Marin
    Frame

    Double Butted CrMo, w/rack, fender and frame bag mounts, tapered headtube

    Fork

    CrMo, with lowrider rack and fender mount, suspension-corrected w/tapered steerer tube

    Bottom Bracket

    External Sealed Cartridge Bearing

    Headset

    FSA Orbit, Sealed Cartridge Bearing, 1 1/8

    Stem

    Marin 3D Forged Alloy

    Handlebar

    Marin Mini-Riser, 10mm Rise 740mm Width

    Saddle

    Marin MTB

    Seatpost

    Marin Alloy Light

    Type: Rigid

    Pedals

    Aluminum Platform

    Grips

    Marin Locking

    Groupset
    Rear Derailleur

    SRAM X7 Type-2

    Crank

    Forged Alloy 1x10, Hollow Spindle, Narrow-Wide 32T

    Shifters

    SRAM X5 10-speed

    Cassette

    Sunrace 10-Speed, 11-42T

    Chain

    KMC X10

    Brakes

    Shimano BR-M445 Hydraulic Disc, 180mm Centerlock Rotor

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BR-M445 Hydraulic

    Wheels
    Rims

    Maddux DD40 27.5+, Double Wall, 40mm Inner, Tubeless Ready

    Front Hub

    Formula, 100mm, Centerlock Disc, 32H

    Rear Hub

    Formula, 135mm, Quad Cartridge Sealed Bearings, Centerlock Disc, 32h

    Tires

    Kenda Havok, 27.5x2.8
