    Mount Vision 92016 Marin
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Frame
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		SRAM Guide RS Hydraulic Disc
    		X01
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		140mm
    Brand Site

    marinbikes.com

    Summary

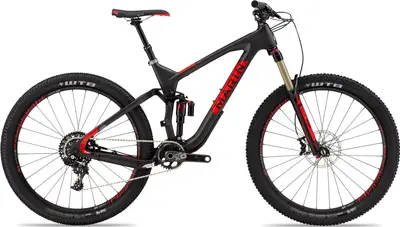

    		The Marin Mount Vision 9 is a 27.5″ carbon frame full suspension trail bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Mount Vision 9
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    Mount Vision 9

    Highest gear

    (descending)

    Geometry
    Specs
    Mount Vision 92016 Marin
    Frame

    Carbon Frame and Swingarm, 27.5” Wheels, 140mm Travel IsoTrac Suspension Platform

    Fork

    BOS Deville AM 27.5”, 140mm Travel

    Travel: 140mm

    Shock

    BOS Kirk, Rebound, 200x57mm Stroke

    Travel: 140mm

    Bottom Bracket

    SRAM GXP

    Headset

    FSA Orbit, Sealed Cartridge Bearing, 1 1/8

    Stem

    Gamut Cillos 3D Forged Alloy

    Handlebar

    Deity Blacklabel, 15mm Rise, 787mm Width

    Saddle

    WTB Volt Race

    Seatpost

    KS LEV Integra Dropper Post, Southpaw Remote

    Type: Dropper

    Grips

    Marin Locking

    Groupset
    Rear Derailleur

    SRAM X01

    Crank

    SRAM X01 Carbon, X-Sync Direct Mount 32T

    Shifters

    SRAM X01 w/ Matchmaker 1x11-Speed

    Cassette

    SRAM XG-1175 11-Speed, 10-42T

    Chain

    KMC X11L

    Brakes

    SRAM Guide RS Hydraulic Disc, 180mm Rotor

    Type: SRAM Guide RS Hydraulic Disc

    Brake Levers

    SRAM Guide RS Hydraulic

    Wheels
    Rims

    DT Swiss M1700, 22.5mm Inner, Tubeless Ready

    Front Hub

    DT Swiss

    Rear Hub

    DT Swiss, SRAM XD Driver

    Tires

    Front: WTB Trail Boss, 27.5x2.4” Rear: WTB Riddler, 27.5x2.4”, Folding, Tubeless Ready
