    Mount Vision 52016 Marin
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    5.3
    Frame
    		Aluminum
    		Suntour AION
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Tektro Hydraulic Disc
    		SLX, Deore
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		140mm
    Brand Site

    marinbikes.com

    Summary

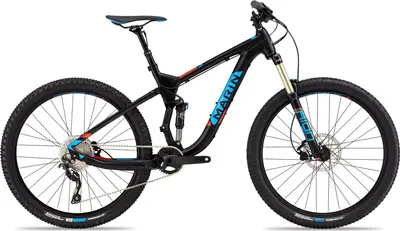

    		The Marin Mount Vision 5 is a 27.5″ aluminum frame full suspension trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Mount Vision 5
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    Mount Vision 5

    Highest gear

    (descending)

    Geometry
    Specs
    Mount Vision 52016 Marin
    Frame

    6061 Aluminum Frame, 27.5” Wheels, 140mm Travel IsoTrac Suspension Platform

    Fork

    SR Suntour Aion LO-R 27.5”, Tapered Alloy Steerer, 15mm Thru-Axle, 140mm Travel

    Travel: 140mm

    Spring Type: Air

    Shock

    X-Fusion O2 RL, Adjustable Rebound, Compression, Lockout, 200x57mm Stroke

    Travel: 140mm

    Bottom Bracket

    External Sealed Cartridge Bearing

    Headset

    FSA Orbit, Sealed Cartridge Bearing, 1 1/8

    Stem

    Marin 3D Forged Alloy

    Handlebar

    Marin Riser, 780mm Width

    Saddle

    Marin Speed Concept

    Seatpost

    Trans-X Dropper Post

    Type: Dropper

    Grips

    Marin Dual Density

    Groupset
    Rear Derailleur

    Shimano SLX Shadow Plus

    Crank

    Forged Alloy 1x10, Hollow Spindle, Narrow-Wide 32T

    Shifters

    Shimano Deore 1x10-Speed

    Cassette

    Sunrace 10-Speed, 11-42T

    Chain

    KMC X10

    Brakes

    Tektro Auriga Hydraulic Disc, 180mm Rotor

    Type: Tektro Hydraulic Disc

    Brake Levers

    Tektro Auriga Hydraulic

    Wheels
    Rims

    WTB ST i25, 25mm Inner, Tubeless Ready

    Front Hub

    Formula, 100x15mm, 6-Bolt Disc, 32H

    Rear Hub

    Formula, 142x12mm, Quad Sealed Bearing, 6-Bolt Disc, 32H

    Tires

    Front: Vee Tire Fluid, 27.5x2.4”, Rear: Vee Tire Crown Gem, 27.5x2.35”
