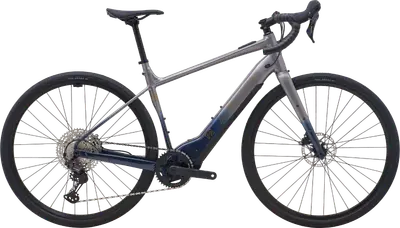

    Lombard E12025 Marin
    Recommended
    MSRP
    $4,299
    Where to Buy
    $4,299

    At Cambria Bike

    Category
    		Gravel, E-Bike
    4.2
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		50c
    		Shimano GRX 400 Hydraulic Disc
    		Bosch 250W 55Nm hub-drive
    		Bosch 400Wh
    		GRX 800
    Drivetrain
    		1 × 12
    Brand Site

    marinbikes.com

    Summary
    		The Marin Lombard E1 is an aluminum frame gravel e-bike with high-end components and shimano grx 400 hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Lombard E1
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    Lombard E1

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Lombard E12025 Marin
    Frame

    All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

    Tire Clearance: 50c

    Color: Blue Charcoal

    Fork

    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

    Bottom Bracket

    -

    Headset

    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

    Stem

    Marin 3D Forged Alloy

    Handlebar

    Marin Butted Alloy, Compact 16º Flared Drop

    Saddle

    Marin Beyond Road Concept Elite

    Seatpost

    Marin Alloy, 27.2

    Type: Rigid

    Pedals

    Flats

    Grips

    Marin Shock Absorbing Perforated Tape

    Groupset
    Rear Derailleur

    Shimano GRX RD-RX822, 12-speed, Clutch

    Crank

    Forged Alloy, 42T Steel Chainring

    Shifters

    Shimano GRX STRX610, 12-speed

    Cassette

    Shimano CSM6100, 10-51T

    Chain

    KMC E12S

    Brakes

    Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor

    Type: Shimano GRX 400 Hydraulic Disc

    Brake Levers

    Shimano GRX STRX610

    Wheels
    Rims

    Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

    Spokes

    14g Black Stainless Steel

    Front Hub

    Forged Aluminum Alloy, 100x12mm, Disc, 32H

    Rear Hub

    Forged Aluminum Alloy, 142x12mm, Disc, 32H

    Tires

    Vee Tire Co. G-Sport, 700x44, Tubeless Compatible

    Electric Components
    Motor

    Bosch SX Sprint, 250W, 55Nm, Class 3 (28mph, 45Km/h)

    Battery

    Bosch Compact Power Tube 400, 400Wh
