    DSX 12025 Marin
    Recommended
    MSRP
    $1,199
    Where to Buy
    $1,199

    At Jenson USA

    $1,199

    At Cambria Bike

    Category
    		Gravel
    3.5
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Tektro Hydraulic Disc
    		CUES
    Drivetrain
    		1 × 10
    Brand Site

    marinbikes.com

    Summary

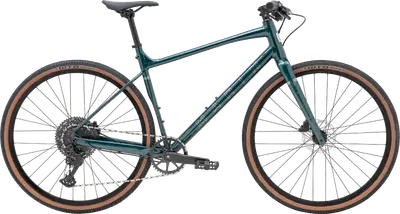

    		The Marin DSX 1 is an aluminum frame gravel bike with mid-range components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    DSX 1
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    33 mph

    DSX 1

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    DSX 12025 Marin
    Frame

    Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

    Color: Green Silver

    Fork

    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

    Bottom Bracket

    External Sealed Cartridge Bearings

    Headset

    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

    Stem

    Marin 3D Forged Alloy

    Handlebar

    Marin MiniRiser

    Saddle

    Marin DSX

    Seatpost

    Marin Alloy

    Type: Rigid

    Pedals

    Nylon Platform

    Grips

    Marin MTB

    Groupset
    Rear Derailleur

    Shimano CUES U6000GS, w/Clutch

    Crank

    Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring

    Shifters

    Shimano CUES 10-speed

    Cassette

    Shimano CUES CSLG300, 10-Speed, 11-48T

    Chain

    KMC LG

    Brakes

    Tektro HD-R285 Flat Mount Hydraulic, 160mm Rotor

    Type: Tektro Hydraulic Disc

    Brake Levers

    Tektro Hydraulic

    Wheels
    Rims

    Marin Aluminum Double Wall, 21mm Inner, Disc Specific

    Spokes

    14g Black Stainless Steel

    Front Hub

    Forged Aluminum, 100x12mm, Disc Specific, 32H

    Rear Hub

    Forged Aluminum Alloy, 142x12mm, Disc Specific, 32H

    Tires

    WTB Riddler, 700Cx45mm
