MSRP | $6,299 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Frame | Aluminum | |
| Fox Performance Elite Float 38 | ||
| Fox DHX2 Performance Elite | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| Shimano SLX Hydraulic Disc | ||
| Shimano 250W 85Nm mid-drive | ||
| 630Wh | ||
| XT, SLX | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 150mm | |
Brand Site | ||

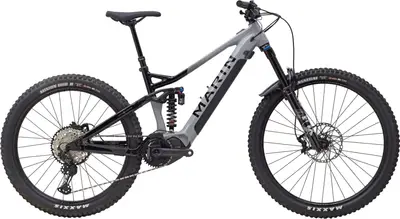

Summary | The Marin Alpine Trail E2 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor Color: Grey / Black | |
|---|---|---|
Fork | Fox 38 Performance Elite, 160mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender Travel: 160mm Spring Type: Air | |
Shock | Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring = 350lb, L/XL Spring = 450lb Travel: 150mm Spring Type: Coil | |
Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” | |
Stem | Race Face Affect R 35, 50mm | |
Handlebar | Race Face Affect R 35, 35mm Clamp, 780mm Width, 20mm Rise, 5º Up, 8º Back | |
Saddle | Marin E-MTB Saddle | |
Seatpost | X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm Type: Dropper | |
Pedals | Marin MTB Plastic | |
Grips | Marin Single Clamp Locking |
Rear Derailleur | Shimano XT 8100 12-Speed, SGS | |
|---|---|---|
Front Derailleur | - | |
Crank | e13 e*Spec Plus Crank, 165mm Length with e13 e*Spec DM Chainring 38T, e13 Plus Chainguide, Aluminum Plate | |
Shifters | Shimano SLX 7100 12-Speed, I-Spec EV | |
Cassette | Shimano SLX M7100, 12-Speed, 10-51T | |
Chain | KMC E12S, E-Bike Specific Chain | |
Brakes | Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor Type: Shimano SLX Hydraulic Disc | |
Brake Levers | Shimano SLX Levers, I-Spec EV |
Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width; Pinned Joint, Disc Specific, Tubeless Compatible | |
|---|---|---|
Spokes | 14g Black Stainless Steel | |
Front Hub | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H | |
Rear Hub | Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body | |
Tires | Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, EXO+, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8”, 3C Maxx Terra, EXO+, Tubeless Compatible |
Motor | Shimano STEPS EP8 Drive Unit, 250W, 85Nm | |
|---|---|---|
Battery | BT-8036, Internal 630Wh | |
Display | SC-E8000 Display |
