Today’s Deals | Recommended |
|---|
MSRP | $4,559 | |
|---|---|---|
Where to Buy | $4,199 14% off At evo | |
Category | Enduro, E-Bike | |
Frame | Aluminum | |
| Marzocchi Bomber Z1 | ||
| Marzocchi | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| TRP Slate EVO Hydraulic Disc | ||
| Bosch 600W 85Nm mid-drive | ||
| Bosch 750Wh | ||
| CUES | ||
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 160mm | |
Brand Site | ||

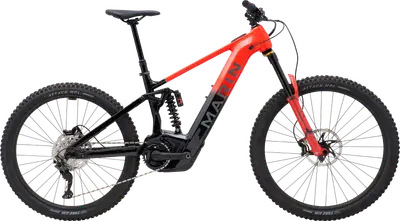

Summary | The Marin Alpine Trail E1 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | All New Series 4 Alloy, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle Color: Red / Black | |
|---|---|---|
Fork | Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset Travel: 170mm Spring Type: Air | |
Shock | Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30xM8 Lower Hardware, Custom Tune, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb Travel: 160mm | |
Headset | FSA Custom Headset, Adjustable HTA Design | |
Stem | Marin 3D Forged Alloy, 35mm | |
Handlebar | Marin Mini Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back | |
Saddle | Marin Speed Concept | |
Seatpost | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm Type: Dropper | |
Pedals | Marin MTB Plastic | |
Grips | Marin Grizzly Lock-On |
Rear Derailleur | Shimano CUES RD-U6000 GS, 10-Speed | |
|---|---|---|
Crank | e*thirteen e*spec Plus, 160mm Length | |
Shifters | Shimano CUES SL-U6000-10R, 10-Speed | |
Cassette | Shimano CS-LG300-10, 11-48T | |
Chain | Shimano LG500 | |
Brakes | TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor Type: TRP Slate EVO Hydraulic Disc | |
Brake Levers | TRP Slate EVO, I-Spec EV Compatible |
Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible | |
|---|---|---|
Spokes | 14g Black Stainless Steel | |
Front Hub | Shimano Front Hub, 110x10 Thru Axle, 32H, Centerlock | |
Rear Hub | Shimano FHTC500, 148x12 Thru Axle, Mircospline, 32H, Centerlock | |
Tires | Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5" |
Motor | Bosch Performance CX, 600W, 85Nm | |
|---|---|---|
Battery | Bosch PowerTube 750Wh | |
Display | Bosch BRC3100 Systems Controller |
