MSRP | $4,899 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Frame | Aluminum | |
| RockShox 35 Gold RL | ||
| RockShox Super Deluxe Coil | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| Shimano Hydraulic Disc | ||
| Shimano 250W 60Nm mid-drive | ||
| 504Wh | ||
| Deore | ||
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 150mm | |
Brand Site | ||

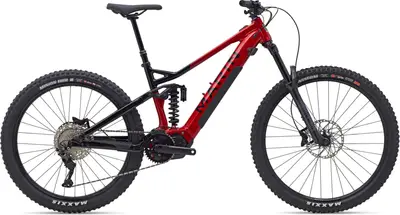

Summary | The Marin Alpine Trail E1 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor Color: Red / Black Charcoal | |
|---|---|---|
Fork | RockShock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset Travel: 160mm Spring Type: Air | |
Shock | RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb Travel: 150mm Spring Type: Coil | |
Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” | |
Stem | Marin 3D Forged Alloy, 35mm | |
Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back | |
Saddle | Marin eMTB Saddle | |
Seatpost | TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm Type: Dropper | |
Pedals | Marin MTB Plastic | |
Grips | Marin Single Clamp Locking |
Rear Derailleur | Shimano Deore 5100 Direct Attachment, 10-Speed | |
|---|---|---|
Front Derailleur | - | |
Crank | Marin Forged Alloy 165mm Length, Narrow Wide 38T Chainring, e13 Plus Chain guide, Aluminum Plate | |
Shifters | Shimano Deore M4100-R, I-Spec EV, 10-Speed | |
Cassette | Shimano Deore M4100-10 10-speed 11-46T | |
Chain | KMC X-10E, EBike Specific, Silver | |
Brakes | Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor Type: Shimano Hydraulic Disc | |
Brake Levers | Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible |
Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible | |
|---|---|---|
Spokes | 14g Black Stainless Steel | |
Front Hub | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H | |
Rear Hub | Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body | |
Tires | Front: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible |
Motor | Shimano STEPS E7000, 250W, 60Nm | |
|---|---|---|
Battery | BT-8035, Internal 504Wh | |
Display | SC-E7000 Display |
