MSRP | $4,499 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Frame | Aluminum | |
| X-Fusion TRACE | ||
| X-Fusion | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| Shimano Hydraulic Disc | ||
| Shimano 250W 85Nm mid-drive | ||
| 504Wh | ||
| Deore, CUES | ||
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 150mm | |
Brand Site | ||

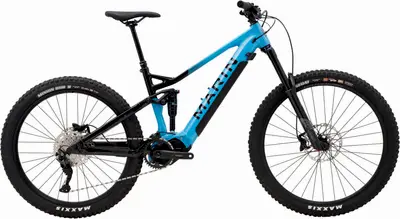

Summary | The Marin Alpine Trail E is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor Color: Gloss Blue / Black | |
|---|---|---|
Fork | X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset Travel: 160mm Spring Type: Air | |
Shock | X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount Travel: 150mm | |
Headset | FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” | |
Stem | Marin 3D Forged Alloy, 35mm | |
Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back | |
Saddle | Marin eMTB Saddle | |
Seatpost | TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm Type: Dropper | |
Pedals | Marin MTB Plastic | |
Grips | Marin Grizzly Lock On |
Rear Derailleur | Shimano CUES 10-Speed | |
|---|---|---|
Crank | Shimano EM600, 160mm Length, 38t Chainring | |
Shifters | Shimano Deore, 10-Speed, I-Spec EV | |
Cassette | Shimano Deore 10-speed 11-46T | |
Chain | KMC X-10E, Silver | |
Brakes | Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor Type: Shimano Hydraulic Disc | |
Brake Levers | Shimano MT4100 Hydraulic |
Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible | |
|---|---|---|
Front Hub | Forged Aluminum, 110x15mm, Disc, 32H | |
Rear Hub | Forged Aluminum, 148x12mm, Disc, 32H | |
Tires | Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible |
Motor | Shimano Steps EP6 Drive Unit, 250W, 85Nm | |
|---|---|---|
Battery | BT-EN805L, Internal 504Wh | |
Display | SC-E600 Display |
