MSRP | $2,349 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 60.1 lbs | |
Frame | Aluminum | |
| Suntour XCT | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Tektro Hydraulic Disc | ||
| 500W 90Nm hub-drive | ||
| Panasonic 614Wh | ||
| Altus | ||
Drivetrain | 3 × 8 | |
Suspension | Hardtail | |
Front Travel | 80mm | |
Brand Site | ||

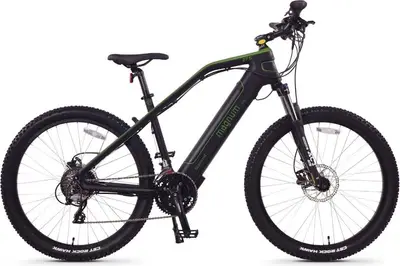

Summary | The Magnum Summit is a 27.5″ aluminum frame hardtail crosscountry e-bike with modest components. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy | |
|---|---|---|
Fork | SR Suntour XCT Spring Suspension, 80mm Travel, Compression Adjust, 28mm Steel Stanchions, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer Travel: 80mm Spring Type: Coil | |
Headset | Neco, Threadless, Internal Cups, Straight 1-1/8" | |
Stem | Promax, 120mm Length, Adjustable Angle, 31.8mm Clamp Diameter, One 15mm Spacer, One 5mm Spacer | |
Handlebar | Low Rise, Aluminum Alloy, 760mm Length | |
Saddle | Magnum Branded Velo, Active | |
Seatpost | Promax, Aluminum Alloy Type: Rigid | |
Pedals | Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins, Reflectors | |
Grips | Velo, Ergonomic, Rubber, Locking |
Crank | Shimano Crank Arms, Aluminum Alloy, 170mm Length, Square Taper Bottom Bracket, Shimano Altus Hyperdrive Derailleur, 48-38-28 Tooth Steel Chainrings | |
|---|---|---|
Shifters | Shimano SL-M310 Triggers on Left and Right (One-Way High, Three-Shift Low) | |
Cassette | 24 Speed 3x8 Shimano Acera Derailleur, DNP 8-32 Tooth Nickel Plated Cassette | |
Brakes | Tektro HD-E350 Hydraulic Disc with 180mm Rotors, Three Finger Levers with Motor Inhibitors, Adjustable Reach Type: Tektro Hydraulic Disc |
Rims | Aluminum Alloy, Double Walled, 32mm Outer Width, 36 Hole | |
|---|---|---|
Spokes | Stainless Steel, 12 Gauge, Silver with Adjustable Nipples | |
Tires | CST ROCK HAWK, 27.5" x 2.4" (60-584), 29" x 2.4" (60-622) |
Motor | Weight: 10.1 lbs (4.58 kg), Brand: Das-Kit, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 700 watts, Torque: 90 Newton meters | |
|---|---|---|
Battery | Weight: 7.6 lbs (3.44 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 12.8 ah, Watt Hours: 614 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) | |
Display | Das-Kit C7, Fixed, Backlit, Monochrome LCD |
