    Overvolt TR 4.62026 Lapierre
    Recommended
    MSRP
    ($5,584)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		60.2 lbs
    5.1
    Frame
    		Aluminum
    		Suntour XCR Air
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Deore Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		Bosch 625Wh
    		CUES
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		-
    Brand Site

    lapierrebikes.com

    Summary

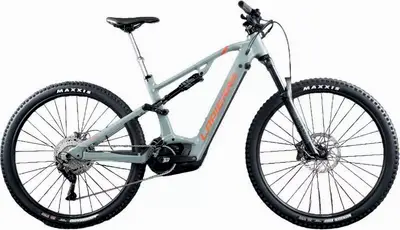

    		The Lapierre Overvolt TR 4.6 is a 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Overvolt TR 4.6
    Other Trail bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Overvolt TR 4.62026 Lapierre
    Frame

    HIGH Aluminium Gents

    Color: Pastel Grey - Matt&glossy

    Fork

    Suntour XCR 34 Air LO-R 15x110 29" 140 mm

    Travel: 140mm

    Spring Type: Air

    Shock

    Lapierre Metric 210x50 mm

    Headset

    Fsa Integrated NO.55R/57E, Black Anodized, 1-1/8"-1.5"

    Stem

    Lapierre Alloy CNC, Ø: 31.8 mm, L: 50 mm

    Handlebar

    Lapierre Flat bar Alloy 6061 DB, Rise: 30 mm, Ø: 31.8 mm

    Saddle

    Selle Royal MTB Vivo

    Seatpost

    Lapierre Dropperpost Dropper, Ø: 31.6 mm, travel: 150 mm + Shimano lever

    Type: Dropper

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano Deore CUES U6000 10/11s Shadow+

    Crank

    Samox EC40-F13-ISIS + E13 E-spec steel chainring 165

    Shifters

    Shimano Triggershift CUES SL-U6000-10R

    Cassette

    Shimano Cassette CUES CS-LG300-10, HG

    Chain

    Shimano Chain CUES LG500 9/10/11s

    Brakes

    Shimano Hydraulic Disc brake M4100 2 pistons, 203 mm

    Type: Shimano Deore Hydraulic Disc

    Brake Levers

    Shimano BL-M4100

    Wheels
    Rims

    Lapierre eAM+ 32H, 622x30 Tubeless Ready

    Front Hub

    Lapierre DA210, boost 15x110, 32H Centerlock

    Rear Hub

    Lapierre DA210, 4 sealed bearings, boost 12x148, 32H Centerlock

    Tires

    Maxxis Minion DHF EXO TR 2.5 WT 60TPI

    Disc Rotors

    Shimano SM-RT30 203 / RT-EM300 with Magnet 203 mm, Centerlock

    Electric Components
    Motor

    Bosch Performance line CX

    Battery

    Bosch Intube battery 625Wh, Capacity: 625 Wh, Location: Tube diagonal

    Display

    Bosch LED Remote

    Charger

    Bosch Quick Charger Charger 4A
