    SCARP MASTER2022 KTM
    Recommended
    MSRP
    ($5,816)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		24.0 lbs
    6.6
    Frame
    		Carbon
    		Fox Factory Float 32
    		Fox Float DPS Factory
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano XT Hydraulic Disc
    		XT
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		100mm
    Rear Travel
    		95mm
    Brand Site

    ktm-bikes.at

    Summary

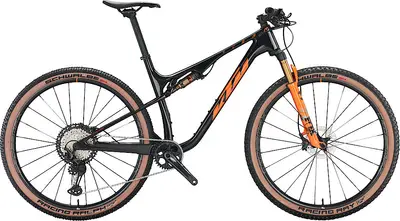

    		The KTM SCARP MASTER is a 29″ carbon frame full suspension crosscountry bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    SCARP MASTER
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    SCARP MASTER

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    SCARP MASTER2022 KTM
    Frame

    Scarp 29" Premium Carbon SLL95mm / M-1926

    BB Standard: BSA, 73mm, Threaded

    Color: Flaming Black (Orange)

    Fork

    FOX 32 Float SC 29" Factory 100mm remote

    Travel: 100mm

    Spring Type: Air

    Shock

    FOX Float DPS Factory remote 190x37.5

    Travel: 95mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    KTM Team drop/in 1.1/8"-1.5"

    Stem

    KTM Team MTB 7°

    Handlebar

    KTM Team flat 2X 720mm

    Saddle

    Selle San Marco RND Manganese Rails

    Seatpost

    KTM Team 30.9/400

    Type: Rigid

    Pedals

    None

    Grips

    KTM Team silicone

    Groupset
    Rear Derailleur

    Shimano Deore XT M8100-12 SGS shadow+

    Crank

    Shimano Deore XT M8120 34T

    Shifters

    Shimano Deore XT M8100-12

    Cassette

    Shimano Deore XT M8100-12 / 10-51

    Chain

    Shimano M8100-12

    Chain Guide

    None

    Brakes

    Shimano Deore XT M8100 / M8100 2-Piston

    Type: Shimano XT Hydraulic Disc

    Brake Levers

    Shimano Deore XT M8100

    Wheels
    Rims

    Mavic Crossmax 29 CL 110/15TA / 622x25TC

    Spokes

    Mavic Crossmax wheelset

    Front Hub

    Mavic Crossmax wheelset 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver

    Rear Hub

    Mavic Crossmax wheelset 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver

    Tires

    Front: Schwalbe Racing Ray, Evo, SuperRace, TLE, 29" x 2.25", Rear: Schwalbe Racing Ralph, Evo, SuperRace, TLE, 29" x 2.25"

    Disc Rotors

    Shimano MT800 CL 160 / MT800 CL 160 freeza
