    MACINA TEAM 8922026 KTM
    Recommended
    MSRP
    ($4,559)
    Where to Buy
    ($4,559)

    At KTM

    Category
    		Trail, E-Bike
    5.2
    Frame
    		Aluminum
    		RockShox Recon Silver RL
    Wheels
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		Bosch 600W 120Nm mid-drive
    		Bosch 800Wh
    		XT, Deore
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    ktm-bikes.at

    Summary

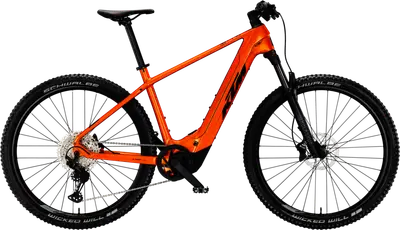

    		The KTM MACINA TEAM 892 is a 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    MACINA TEAM 892
    Other Trail bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MACINA TEAM 8922026 KTM
    Frame

    Macina MTB 29" Alloy 6061 UDH|PT800 Bosch BDU38/M5700

    BB Standard: Bosch, Press Fit

    Hanger Standard: UDH

    Fork

    RockShox Recon Slv RL 29" 120mm 15x110

    Travel: 120mm

    Bottom Bracket

    Bosch, press-fit

    Headset

    Acros AICR intern 1.1/8"-1.5" angle lim

    Stem

    KTM COMP +7° ICR

    Handlebar

    KTM COMP flat 2X 720mm

    Saddle

    KTM Line Sport

    Seatpost

    KTM COMP 30.9/400

    Type: Rigid

    Pedals

    MTB-Pedal VP-195E alloy

    Grips

    Ergon GA20

    Groupset
    Rear Derailleur

    Shimano Deore XT M8100-12 SGS shadow+

    Crank

    KTM E-COMP2 ISIS 170mm Q8

    Shifters

    Shimano Deore M6100-12

    Cassette

    Shimano Deore M6100-12 / 10-51

    Chain

    Shimano M6100-12

    Brakes

    Shimano Deore M6100-12

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Tires

    Front: Schwalbe Wicked Will Perf. 62-622, Rear: Schwalbe Wicked Will Perf. 62-622

    Electric Components
    Motor

    Bosch PERFORMANCE CX BDU3840 up to 120Nm

    Battery

    Bosch PowerTUBE 800Wh horizontal

    Display

    Bosch PURION 200 Display & Remote

    Charger

    Bosch STANDARD Charger 4A

    Riders Also Compared
