    MACINA TEAM 6932022 KTM
    Recommended
    MSRP
    ($4,217)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		54.9 lbs
    4.6
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		Bosch 625Wh
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    ktm-bikes.at

    Summary

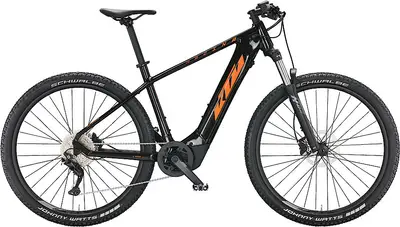

    		The KTM MACINA TEAM 693 is a 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    MACINA TEAM 693
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    MACINA TEAM 693

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MACINA TEAM 6932022 KTM
    Frame

    Macina MTB 29" Alloy6061; PT625Wh Bosch Gen.4 / M-0666

    BB Standard: Bosch, Press Fit

    Color: Flaming Black (Orange+grey)

    Fork

    Suntour XCM 34 coil 29" NLO 120mm 15x110 taper

    Travel: 120mm

    Spring Type: Coil

    Bottom Bracket

    Bosch, press-fit

    Headset

    KTM Team MTB 1.1/8"-1.5" angle limit

    Stem

    KTM Comp 7°

    Handlebar

    KTM Comp flat 2X 720mm

    Saddle

    KTM Line Sport

    Seatpost

    KTM Comp 30.9/400

    Type: Rigid

    Pedals

    MTB-Pedal VP-195E alloy

    Groupset
    Rear Derailleur

    Shimano Deore M4120-10 SGS shadow

    Crank

    KTM COMP ISIS 170mm Q16

    Shifters

    Shimano Deore M4100-10 display

    Cassette

    Shimano Deore M4100-10 / 11-42

    Chain

    KMC e10 EPT e-bike

    Brakes

    Shimano MT200 / MT200 2-Piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black

    Disc Rotors

    Shimano RT30 CL 180 / EM300 CL 180

    Electric Components
    Motor

    Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm

    Battery

    Bosch PowerTUBE 625Wh hor.

    Display

    Bosch PURION LCD Display

    Charger

    Bosch COMPACT Charger 2A
