    Macina Team 2922020 KTM
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		51.4 lbs
    4.6
    Frame
    		Aluminum
    		RockShox Recon Silver RL
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 600W 75Nm mid-drive
    		Bosch
    		SLX
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    ktm-bikes.at

    Summary

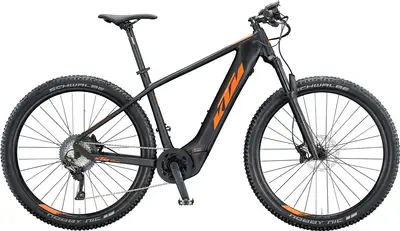

    		The KTM Macina Team 292 is a 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Macina Team 292
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Macina Team 292

    Highest gear

    (descending)

    Geometry
    Specs
    Macina Team 2922020 KTM
    Frame

    Aluminum

    Fork

    RockShox Recon RL

    Travel: 120mm

    Shock

    N/A

    Headset

    KTM Team

    Stem

    KTM Comp, 7° rise

    Handlebar

    KTM Comp Flat, 720mm width

    Saddle

    KTM Line MTB

    Seatpost

    KTM Comp, 400mm

    Type: Rigid

    Pedals

    VP-195E alloy

    Grips

    KTM Comp, lock-on

    Groupset
    Rear Derailleur

    Shimano SLX M7100, 11-speed, SHADOW RD+, GS cage

    Front Derailleur

    N/A

    Crank

    KTM Comp, ISIS, 170mm length

    Shifters

    Shimano SLX M7100, 11-speed, with display

    Cassette

    Shimano SLX M7000, 11-speed, 11-46 tooth

    Chain

    Shimano E8000-11 E-Bike, 11-speed

    Chain Guide

    N/A

    Brakes

    Shimano MT420, 4-piston, Shimano RT54 180mm CENTER LOCK rotors

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano MT420

    Wheels
    Rims

    Ambrosio E30 Trail, 32 hole

    Spokes

    Front: DT Swiss Champion, 2.0, black, Rear: DT Swiss Alpine II, 2.34, black

    Front Hub

    Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

    Rear Hub

    Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

    Tires

    Schwalbe Nobby Nic, Performance, TLR

    Electric Components
    Motor

    Bosch Performance CX Gen.4, 75Nm torque

    Battery

    Bosch PowerTube, lithium-ion, integrated, removable

    Remote

    Bosch Intuvia LCD, with remote

    Display

    Bosch Intuvia LCD, with remote
