    MACINA PROWLER MASTER2023 KTM
    Recommended
    MSRP
    ($8,251)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		56.0 lbs
    6.8
    Frame
    		Carbon
    		Fox Float 38
    		Fox Float X Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Saint Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		Bosch 750Wh
    		XT
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		180mm
    Rear Travel
    		170mm
    Brand Site

    ktm-bikes.at

    Summary

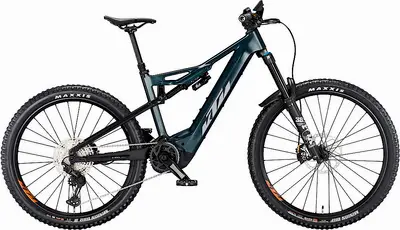

    		The KTM MACINA PROWLER MASTER is a 29″ carbon frame full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    MACINA PROWLER MASTER
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    MACINA PROWLER MASTER

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MACINA PROWLER MASTER2023 KTM
    Frame

    Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236

    BB Standard: Bosch, Press Fit

    Hanger Standard: UDH

    Fork

    FOX 38 Float 29" Rhythm e-bike 180mm

    Travel: 180mm

    Spring Type: Air

    Shock

    FOX Float X Performance 2-Pos 250x75

    Travel: 170mm

    Bottom Bracket

    Bosch, press-fit

    Headset

    Acros AICR internal 1.1/8"-1.5" angle limit

    Stem

    KTM TEAM II Trail35

    Handlebar

    KTM Team Trail35 rizer25 800mm

    Saddle

    Selle San Marco Ground Short Open Fit Narrow

    Seatpost

    KTM COMP II dropper internal

    Type: Dropper

    Pedals

    MTB-Pedal flat VP-539 nylon

    Groupset
    Rear Derailleur

    Shimano Deore XT M8100-12 SGS shadow+

    Crank

    KTM E-TRAIL ISIS 160mm Q16

    Shifters

    Shimano Deore XT M8100-12

    Cassette

    Shimano Deore M6100-12 / 10-51

    Chain

    Shimano M6100-12

    Brakes

    Shimano Saint M820 / M820 4-Piston

    Type: Shimano Saint Hydraulic Disc

    Wheels
    Rims

    KTM E-Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss

    Disc Rotors

    Shimano RT64 CL 203 / 180

    Electric Components
    Motor

    Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

    Battery

    Bosch PowerTUBE 750Wh SMART SYSTEM hor.

    Display

    Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM

    Charger

    Bosch STANDARD Charger 4A SMART SYSTEM
