    MACINA KAPOHO MASTER2021 KTM
    Recommended
    MSRP
    ($7,047)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		53.4 lbs
    7.0
    Frame
    		Carbon
    		Fox Performance Float 36
    		Fox Float DPX2 Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano XT Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		Bosch 625Wh
    		XT
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		160mm
    Brand Site

    ktm-bikes.at

    Summary

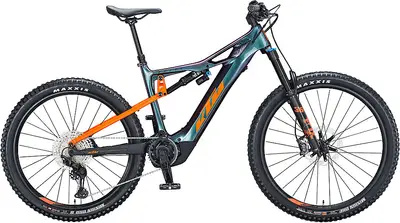

    		The KTM MACINA KAPOHO MASTER is a 29″ carbon frame full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    MACINA KAPOHO MASTER
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    33 mph

    MACINA KAPOHO MASTER

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MACINA KAPOHO MASTER2021 KTM
    Frame

    Macina Kapoho Dimmix Performance Carbon SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0146

    BB Standard: Bosch, Press Fit

    Color: Space Galaxy (Orange+blk)

    Fork

    FOX 36 Float 29" Performance e-bike 160mm

    Travel: 160mm

    Spring Type: Air

    Shock

    FOX Float DPX2 Performance 3Position 250x70

    Travel: 160mm

    Bottom Bracket

    Bosch, press-fit

    Headset

    KTM Team eMTB 1.1/8"-1.5" angle limit

    Stem

    KTM Team Trail35 Kiox

    Handlebar

    KTM Team Trail35 rizer25 800mm

    Saddle

    Ergon SM10 E-Mountain

    Seatpost

    KTM Comp dropper internal

    Type: Dropper

    Pedals

    MTB-Pedal flat VP-539 nylon

    Groupset
    Rear Derailleur

    Shimano Deore XT M8100-12 SGS shadow+

    Crank

    KTM TRAIL ISIS 160mm Q16

    Shifters

    Shimano Deore XT M8100-12

    Cassette

    Shimano Deore M6100-12 / 10-51

    Chain

    Shimano Deore M6100-12

    Brakes

    Shimano Deore XT M8100 / M8120 4-Piston

    Type: Shimano XT Hydraulic Disc

    Wheels
    Rims

    KTM Line - Shimano Deore XT M8110BS CL 28H 110-15TA / Ambrosio E30 Trail 28H 622x30TC / DT Champion 2.0 black

    Disc Rotors

    Shimano MT800 CL 203 / 180 Freeza

    Electric Components
    Motor

    Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm

    Battery

    Bosch PowerTUBE 625Wh hor.

    Display

    Bosch KIOX TFT Display with Remote

    Charger

    Bosch STANDARD Charger 4A
