MSRP | ($5,271) | |
|---|---|---|
Where to Buy | ($5,271) At KTM | |
Category | Enduro, E-Bike | |
Frame | ||
| RockShox 35 Silver | ||
| Suntour | ||
Wheels | ||
Wheel Size | 29″ / 27.5″ | |
| Shimano Deore Hydraulic Disc | ||
| Bosch 600W 120Nm mid-drive | ||
| Bosch 800Wh | ||
| XT, Deore | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | - | |
Brand Site | ||

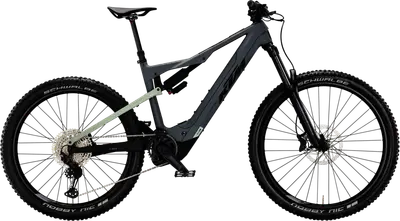

Summary | The KTM MACINA KAPOHO COMP LTD is a 29″ / 27.5″ full suspension enduro e-bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Macina Kapoho Dimmix CB 160 UDH|Bosch BDU38/M6270 BB Standard: Bosch, Press Fit Hanger Standard: UDH | |
|---|---|---|
Fork | RockShox 35 Silver TK 29" 160mm 15x110 Travel: 160mm | |
Shock | Suntour Tri-Air 3CR 250x70 | |
Bottom Bracket | Bosch, press-fit | |
Headset | Acros AICR intern 1.1/8"-1.5" angle lim | |
Stem | KTM TEAM Trail35 | |
Handlebar | KTM COMP Trail35 rizer15 780mm | |
Saddle | Selle Italia Model-X Flow | |
Seatpost | KTM COMP dropper internal 30.9 T:120 Type: Dropper | |
Pedals | MTB-Pedal flat VPE-527 alloy | |
Grips | Ergon GA20 |
Rear Derailleur | Shimano Deore XT M8100-12 SGS shadow+ | |
|---|---|---|
Crank | KTM E-TRAIL ISIS 160mm Q16 | |
Shifters | Shimano Deore M6100-12 | |
Cassette | Shimano Deore M6100-12 / 10-51 | |
Chain | Shimano M6100-12 | |
Brakes | Shimano Deore M6100-12 Type: Shimano Deore Hydraulic Disc |
Tires | Front: Schwalbe Nobby Nic Perf. Folding 65-622, Rear: Schwalbe Nobby Nic Perf. Folding 70-584 |
|---|
Motor | Bosch PERFORMANCE CX BDU3840 up to 120Nm | |
|---|---|---|
Battery | Bosch PowerTUBE 800Wh horizontal | |
Display | Bosch PURION 200 Display & Remote | |
Charger | Bosch STANDARD Charger 4A |
